KWC

Square tile insert drain

SD2004

2030067627 - SD2004 - ACCESSOIRES - Square tile insert drain

KWC

Square tile insert drain

SD2004 2030067627 EAN/GTIN: 7612210399794

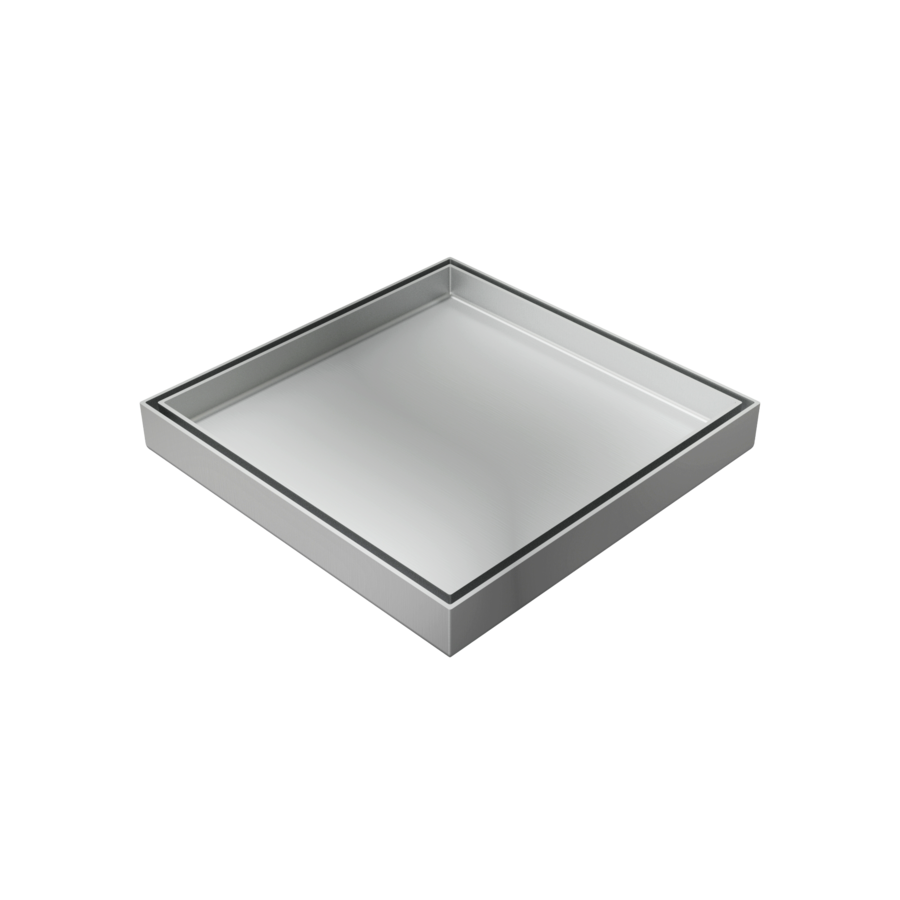

Square tile insert drain 200mmSQ made of stainless steel 304L (EN 1.4307), surface satin finished, material thickness of 2.0mm, with 102mmØ (4") outlet.

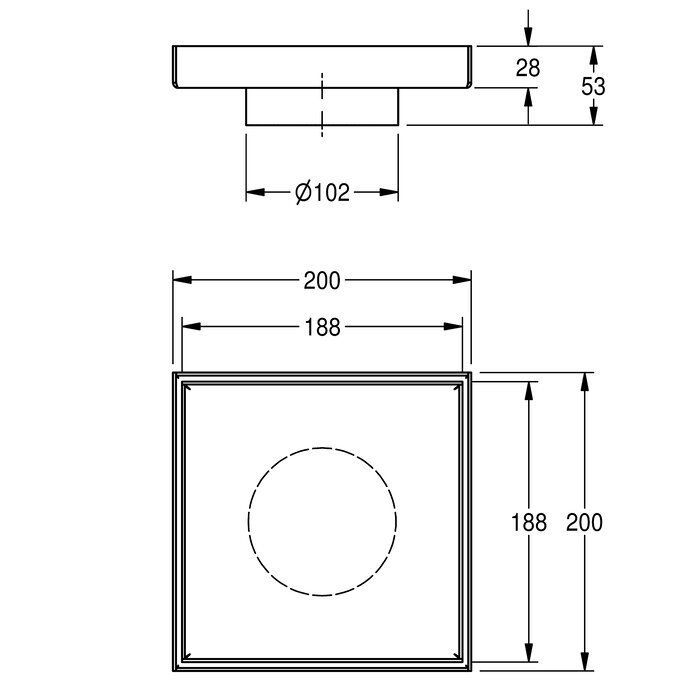

Dimensions 200 x 53 x 200 mm (W x H x D)
130 mm 150 mm 200 mm

Product Specifications

material thickness
2 mm
material
stainless steel
material code
1.4301 Chrome Nickel steel V2A
overall depth
200 mm
overall height
53 mm
overall width
200 mm
surface finish
satin finished
drain outlet
4"
type of drain
tile insert
odor eliminator
no
