KWC CAMPUS

Urinal divider

CMPX560

2000056972 - CMPX560 - CAMPUS - CAMPUS Urinal divider

KWC CAMPUS

Urinal divider

CMPX560 2000056972

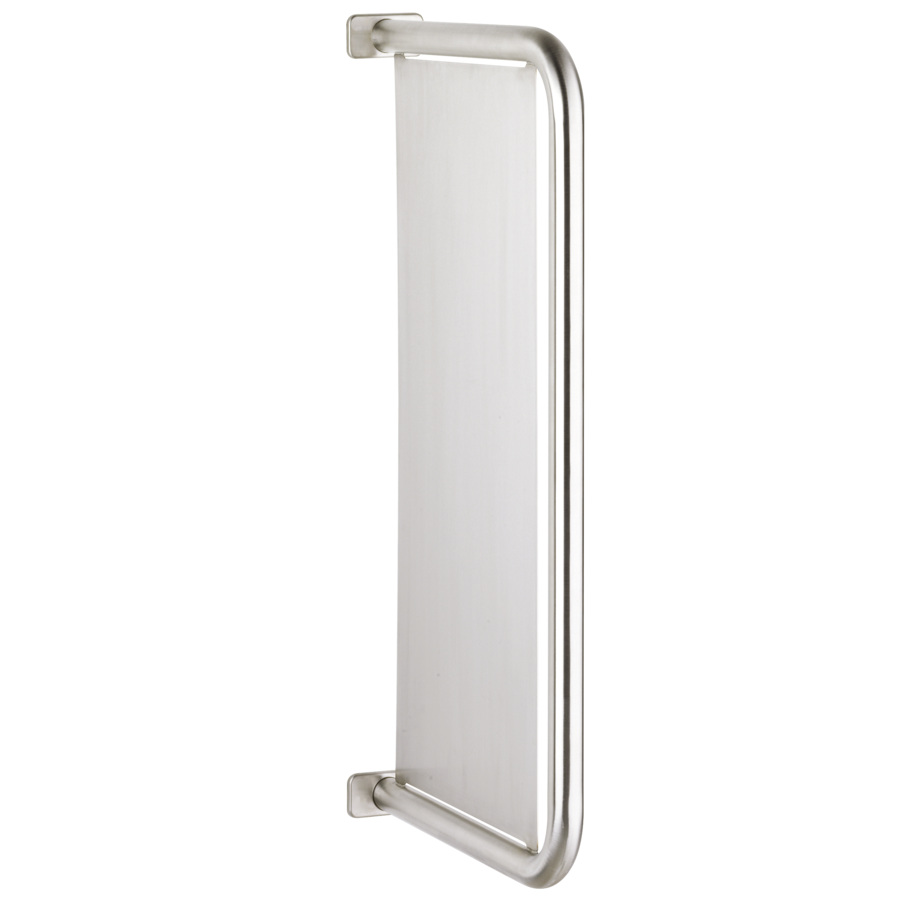

Urinal divider for wall mounting, stainless steel, surface satin finished, material thickness 1.5 mm, 32 mm pipe diameter, with two stainless steel covers for hidden mounting, includes screws and dowels.

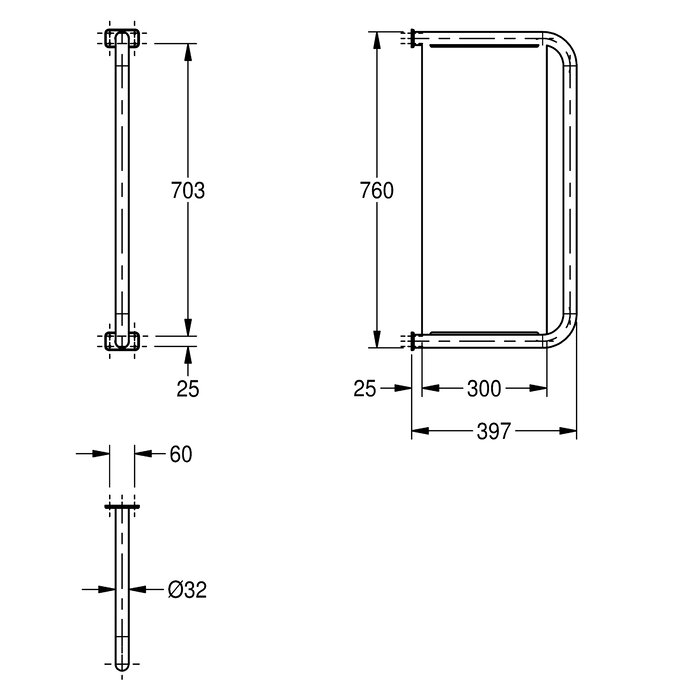

Dimensions 60 x 760 x 397 mm (W x H x D)

Product Specifications

material
stainless steel
material code
1.4301 Chrome Nickel steel V2A
material thickness
1.5 mm
overall depth
397 mm
overall height
760 mm
overall width
81 mm
surface finish
satin finished
type of mounting
wall mounting

Downloads

Technical Documents

BIM Files
