KWC CONTINA

90° angled grab rail, left-hand version

CNTX22WL

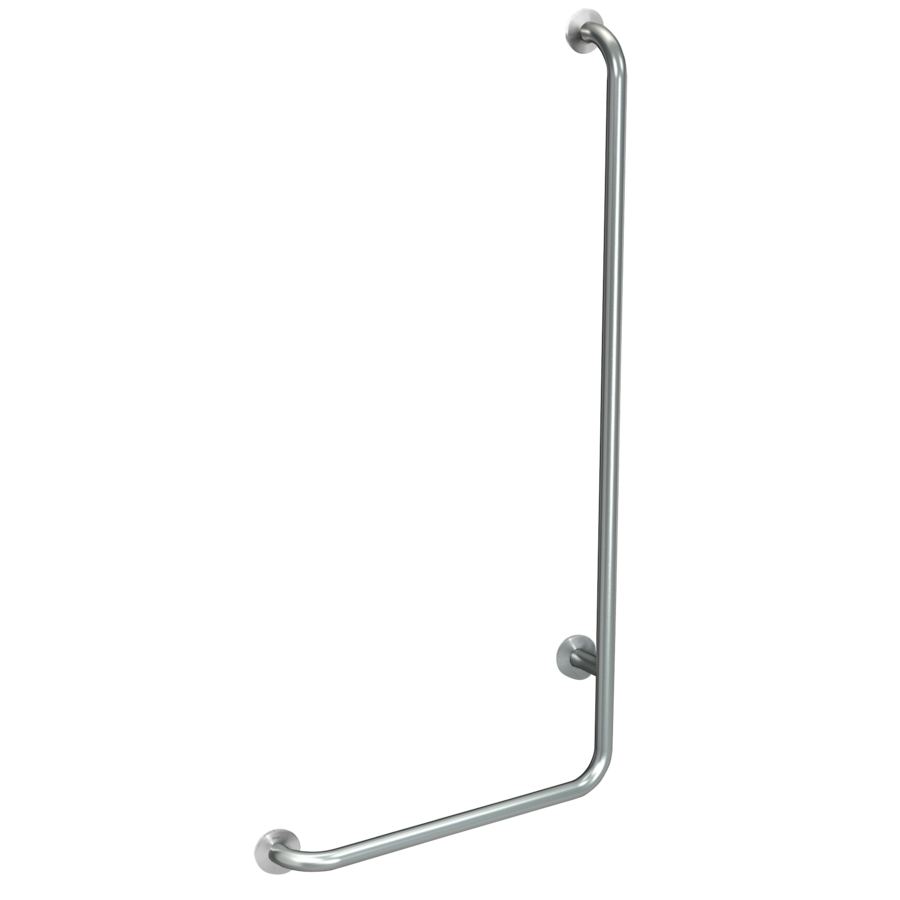

2030038223 - CNTX22WL - CONTINA - CONTINA 90° angled grab rail, left-hand version

KWC CONTINA

90° angled grab rail, left-hand version

CNTX22WL 2030038223

90° angle grab rail for wall mounting, stainless steel, surface satin finished, rough polishing for better surface feel, 32 mm pipe diameter, material thickness 1.2 mm, wall distance 82 mm, with three stainless steel covers for hidden mounting, includes stainless steel screws and dowels.

Type left

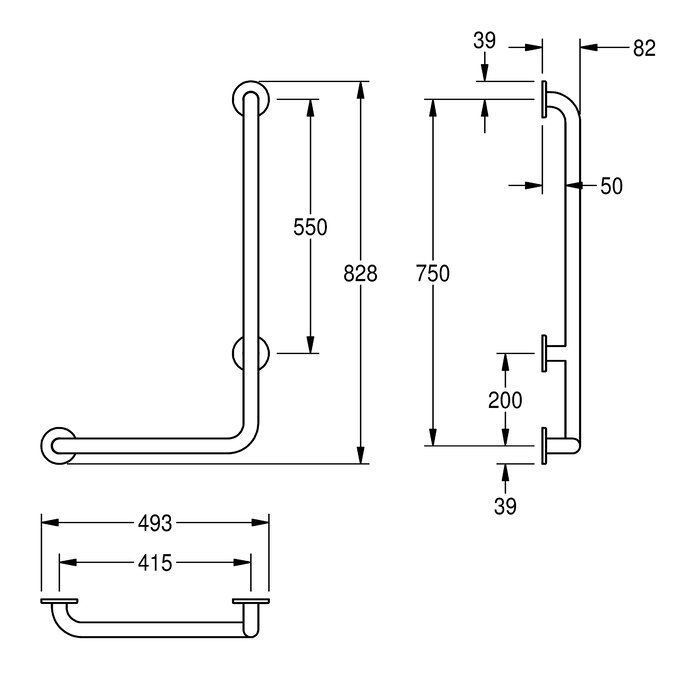

Dimensions 493 x 828 x 82 mm (W x H x D)

Product Specifications

bending angle
90 Degree
direction
left
number of fixing points
3
hidden fixing
yes
hinged
no
material
stainless steel
material code
1.4301 Chrome Nickel steel V2A
material thickness
1.2 mm
overall depth
82 mm
overall height
828 mm
overall width
493 mm
pipe diameter
32 mm
surface finish
satin finished
type of fixing
screw
type of grab rail
angle bar
type of mounting
wall mounting
