KWC CONTINA

Handrail for corners - left

CNTX50WL

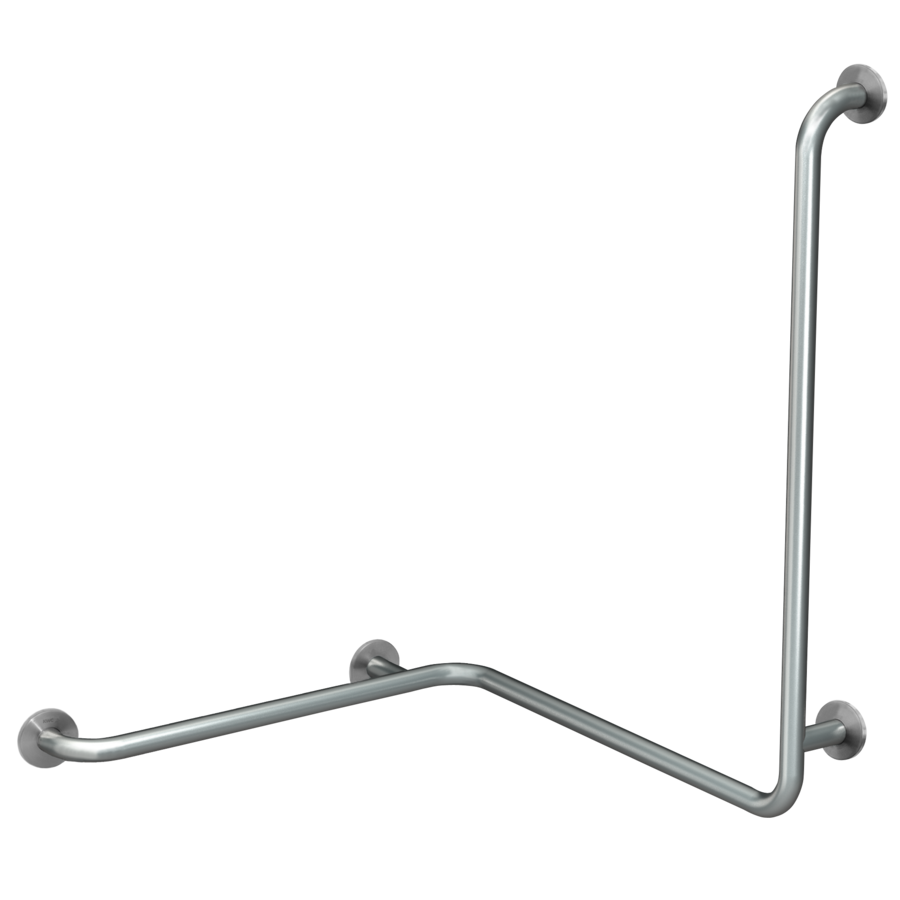

2030038227 - CNTX50WL - CONTINA - CONTINA handrail for corners - left

KWC CONTINA

Handrail for corners - left

CNTX50WL 2030038227

90° angle two way bar for wall mounting, horizontal and vertical, stainless steel, surface satin finished, rough polishing for better surface feel, 32 mm pipe diameter, material thickness 1.2 mm, wall distance 82 mm, with four stainless steel covers for hidden mounting, includes stainless steel screws and dowels.

Type left

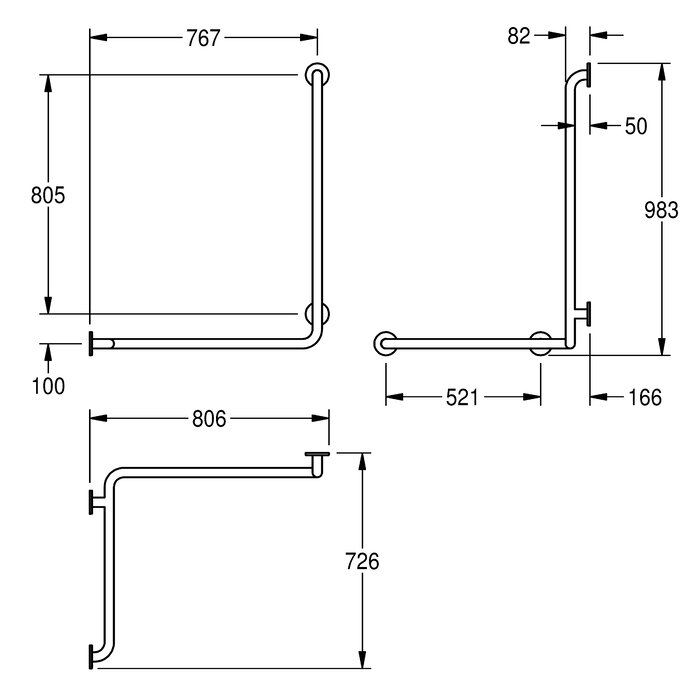

Dimensions 806 x 983 x 726 mm (W x H x D)
left right

Product Specifications

bending angle
90 Degree
colour
no colour
direction
left
number of fixing points
4
hidden fixing
yes
hinged
no
material
stainless steel
material code
1.4301 Chrome Nickel steel V2A
material thickness
1.2 mm
overall depth
726 mm
overall height
983 mm
overall width
819 mm
pipe diameter
32 mm
surface finish
satin finished
type of fixing
screw
type of grab rail
angle bar
type of mounting
wall mounting
