Product Specifications

additional connections

no

circulation

no

compatible A3000 open

no

connection with pay water disp

not possible

adjustable flow time

yes

functional principle

hydraulic self-closing

for hand shower

no

hygiene flushing

no

diameter nominal

DN 15

Locking mechanism

Top section, non-ceramic

material casing

stainless steel

material fitting

brass-look

maximum flow time

35 Seconds

minimum flow pressure

1 bar

minimum flow time

5 Seconds

type of mixing

no

Parameterization

manual

protective shutdown

no

shower pipe draining

no

Shower head

with shower head

with shower set

no

sound insulation

no

surface finish fitting

chromed

thermal disinfection

no

adjustable tilt angle

no

type of mounting

floor mounting

type of operation

manual operation

type of shower

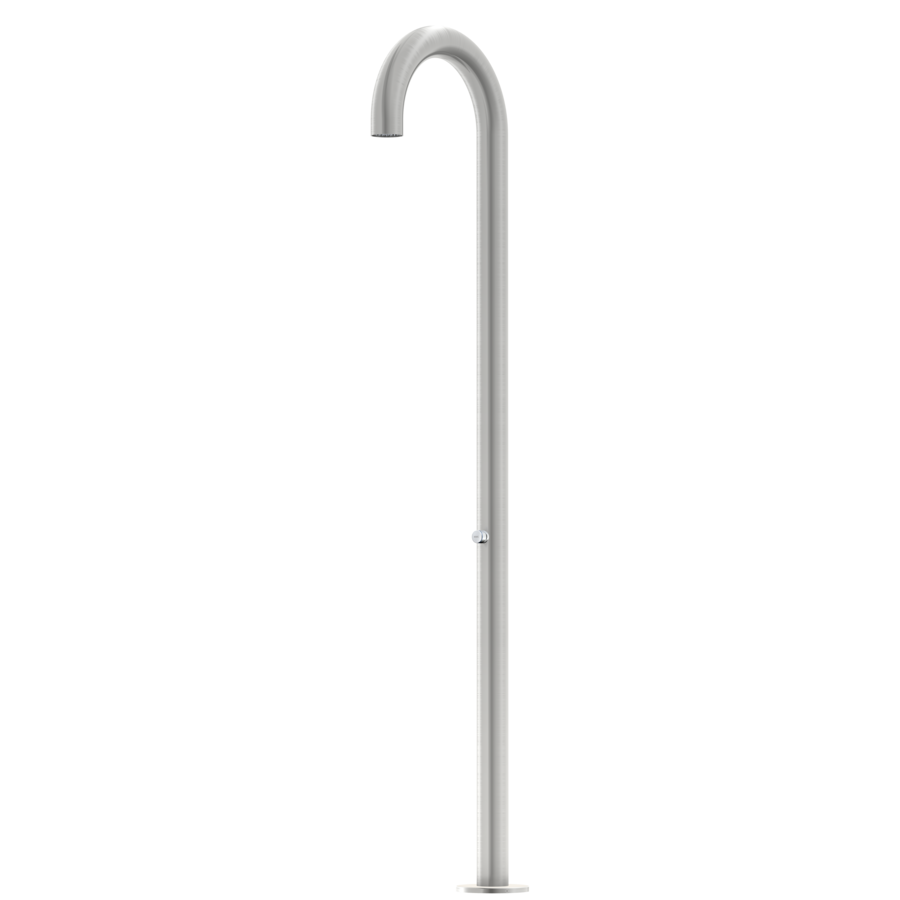

free standing shower

type of shower head

spray shower head

volume flow rate at 3 bar

0.13 l/s

position of water connection

below

with soap dish

no
