KWC F5L-Therm

Stainless steel shower panel with hand shower fitting

F5LT2023

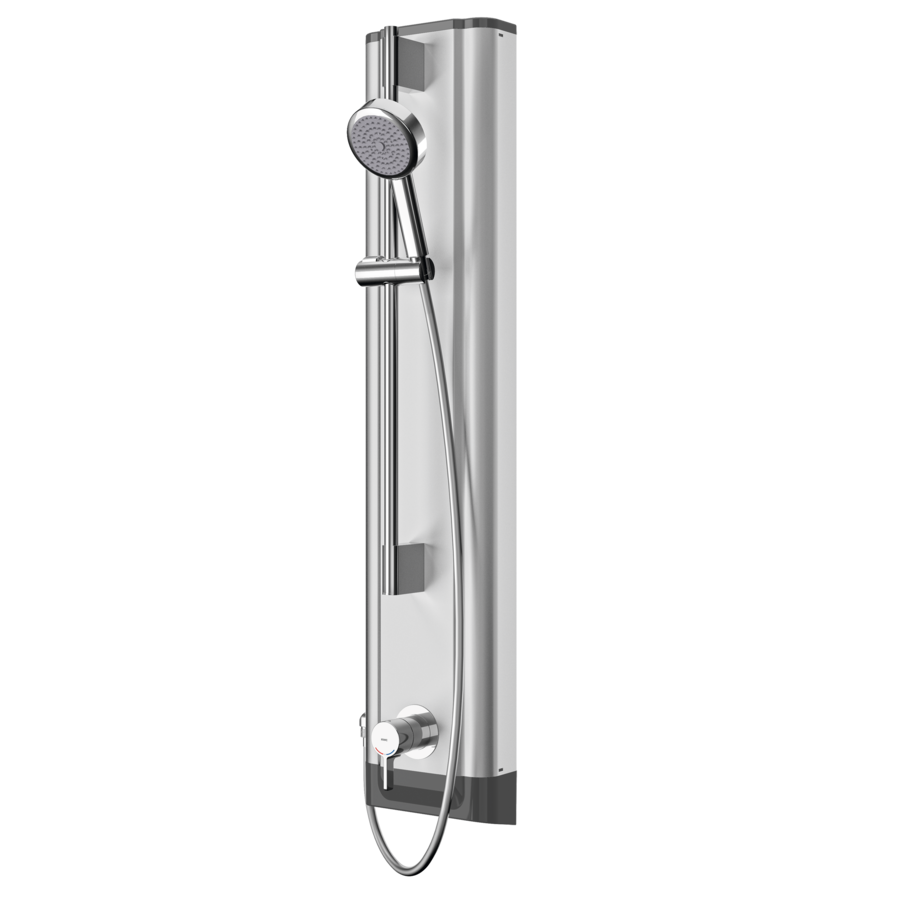

2030066542 - F5LT2023 - F5L - F5L-Therm stainless steel shower panel with hand shower fitting

KWC F5L-Therm

Stainless steel shower panel with hand shower fitting

F5LT2023 2030066542

F5L-Therm stainless-steel shower panel for wall mounting with single-lever thermostat DN 15 and hand shower fitting kit. For connect ion to hot and cold water. Function block with integrated mixing cartridge and mechanism for an optional water hygiene unit for automatic water hygiene flushing, program-controlled thermal disinfection (additional bypass solenoid-operated flush valve cartridge necessary) and storage of statistical data. Thermostatically-controlled mixer cartridge with expansion element and active scald protection as well as adjustable and turn-proof temperature stop, and ceramic disc technology. All-metal construction, visible parts high-polished, chrome-plated. Pre-fitted chrome-plated brass shower rail with height-adjustable hand shower holder and chrome-plated brass hand shower, shower head with rain jet, diameter 110 mm, shower hose 900 mm. Housing made of stainless steel with raised function surface and cover caps made of plastic. With adjustable and lockable connections with backflow preventer and strainers.

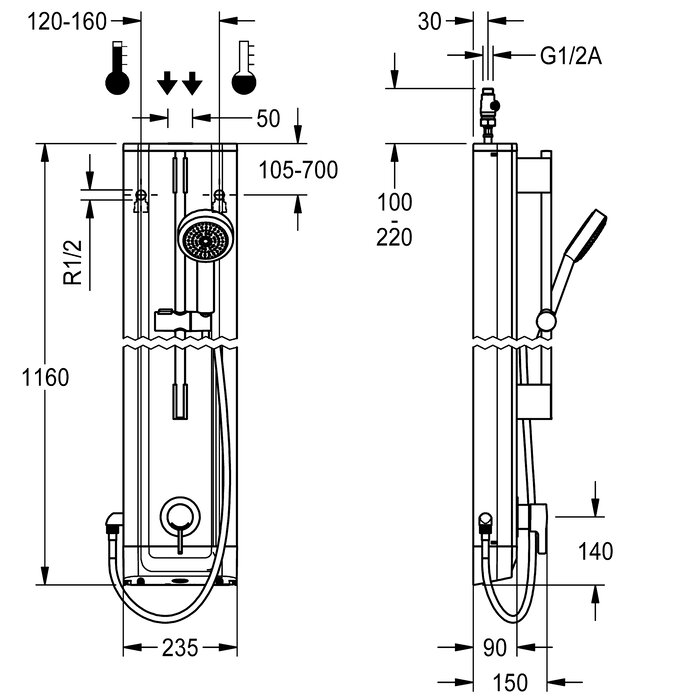

Housing dimensions 235 x 1160 x 90 mm (W x H x D)

Product Specifications

additional connections
no
with backflow preventer
yes
circulation
no
compatible A3000 open
no
connection with pay water disp
not possible
with filter
yes
adjustable flow time
no
functional principle
manual
for hand shower
yes
hygiene flushing
prepared
diameter nominal
DN 15
inlet size
G 1/2 A
Locking mechanism
Top section, ceramic
material casing
stainless steel
material code casing
1.4301 Chrome Nickel steel V2A
material fitting
brass-look
minimum flow pressure
1 bar
type of mixing
with thermostat
overall depth
90 mm
overall height
1,160 mm
overall width
235 mm
with rosettes/cover plate
yes
protective shutdown
no
shower pipe draining
no
with shower set
yes
sound insulation
no
surface finish casing
satin finished
surface finish fitting
chromed
surface treatment fitting
polished
temperature limit
yes
thermal disinfection
yes
type of mounting
wall mounting
type of operation
manual operation
type of shower
shower panel
volume flow rate at 3 bar
0.15 l/s
water connection
hose (gland nut)
position of water connection
from top / backside
with soap dish
no
Accent colour
chrome-look (glossy)
Basic colour
stainless steel-look
