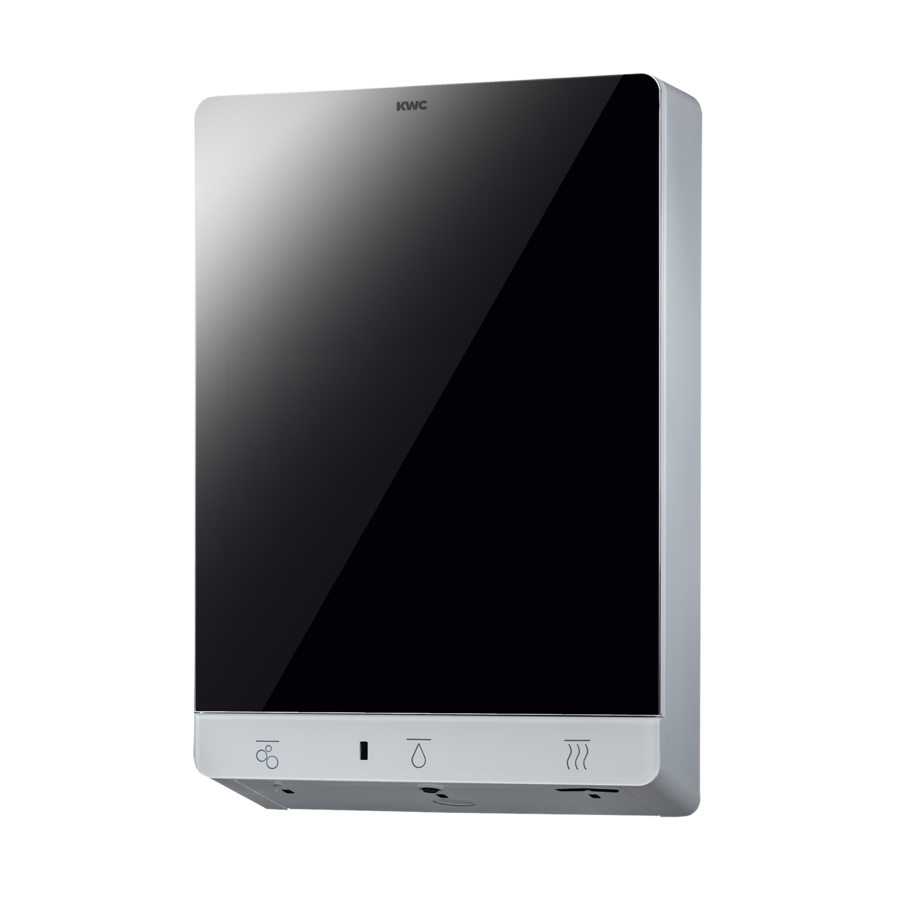

KWC FX-M
Wash place unit Water-Soap-Air
FX-M wash place unit Water-Soap-Air for wall mounting, touch free opto-
electronically controlled. For hot and cold water connectivity. Thermostat for mounting onto angle valve with installation set for preset delivery of premixed hot water, soap pump for liquid soap and hand dryer. Lighting up of pictograms above the respective sensor position as well as start of wash place lighting indicate user detection. The pictogram of the active function is illuminated maximally. Cabinet housing made of powder coated stainless steel, white, mirrored door, door hinge left and cylinder lock.
Minimum flow pressure 1.0 bar
Volume of water flow 6 l/min at 3 bar flow pressure
Supply voltage 230 V AC, 50/60 Hz
Overall power 1000 W
Protection Degree IPX1
Hand Dryer Air Volume 80 m3/h = 22 l/s
Hand Dryer Air Velocity 95-115 m/s

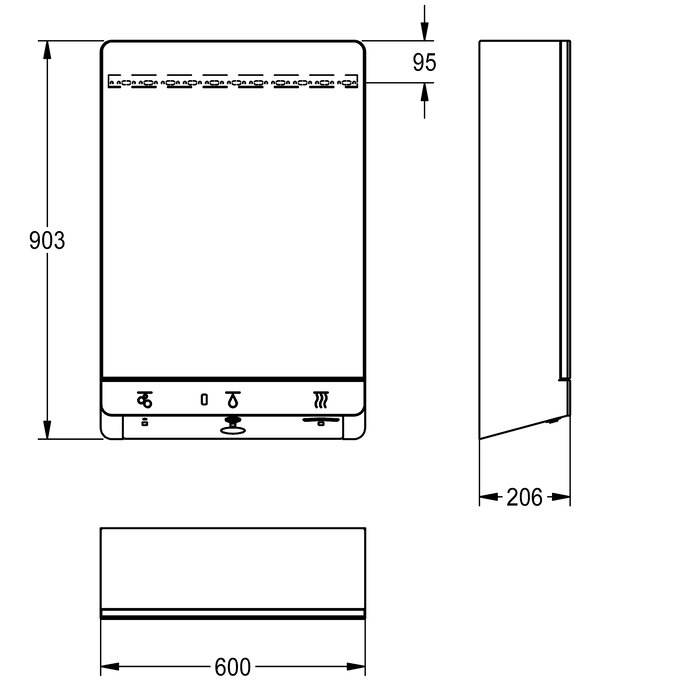

Dimensions 600 x 903 x 206 mm (W x H x D)
electronically controlled. For hot and cold water connectivity. Thermostat for mounting onto angle valve with installation set for preset delivery of premixed hot water, soap pump for liquid soap and hand dryer. Lighting up of pictograms above the respective sensor position as well as start of wash place lighting indicate user detection. The pictogram of the active function is illuminated maximally. Cabinet housing made of powder coated stainless steel, white, mirrored door, door hinge left and cylinder lock.
Minimum flow pressure 1.0 bar
Volume of water flow 6 l/min at 3 bar flow pressure
Supply voltage 230 V AC, 50/60 Hz
Overall power 1000 W
Protection Degree IPX1
Hand Dryer Air Volume 80 m3/h = 22 l/s
Hand Dryer Air Velocity 95-115 m/s
Dimensions 600 x 903 x 206 mm (W x H x D)
