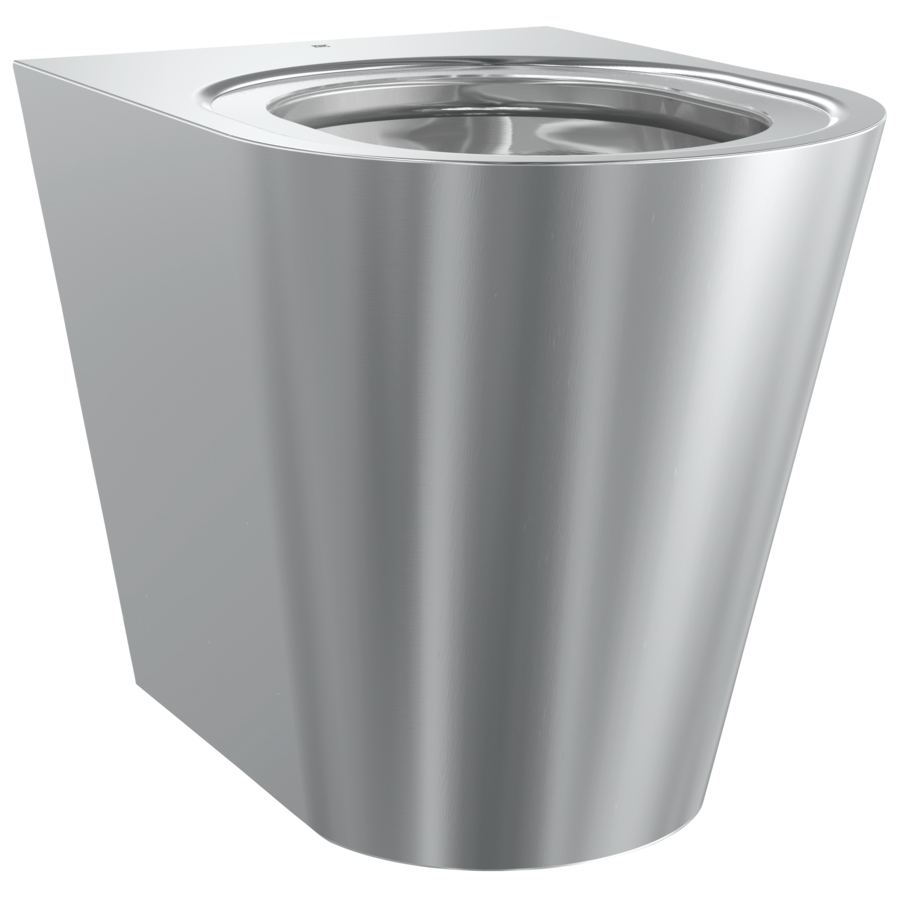

KWC HEAVY-DUTY
Floor standing WC pan
Campus Wall hung WC pan for fitting through duct wall, manufactured from grade 1.4301 (304) stainless steel, material thickness 1,5 mm for the pan and shroud - satin polish finish. The WC incorporates a stainless steel P trap 102 mm o/d. A separate mounting plate and 4 bolts are provided for mounting the WC through a duct wall. The Campus WC has a pressed seating area that does not require a separate seat in vandal prone installations. However, a seat and lid can be fitted. Approval: Complies with BS EN 997 for 4.5 litre flushing. Also complies with the Australian and German test standards.
Without seat and lid

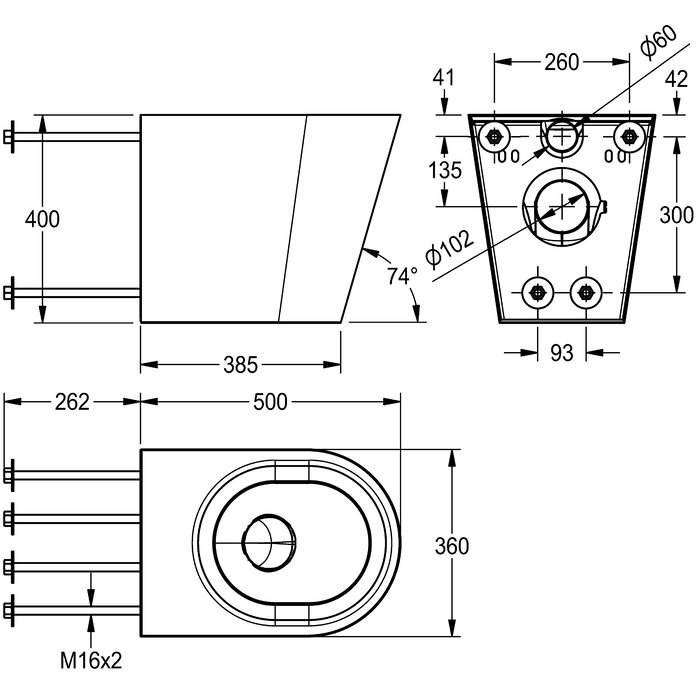

Dimensions 360 x 400 x 500 mm (W x H x D)
Without seat and lid
Dimensions 360 x 400 x 500 mm (W x H x D)
KWC HEAVY-DUTY
Floor standing WC pan
Campus Wall hung WC pan for fitting through duct wall, manufactured from grade 1.4301 (304) stainless steel, material thickness 1,5 mm for the pan and shroud - satin polish finish. The WC incorporates a stainless steel P trap 102 mm o/d. A separate mounting plate and 4 bolts are provided for mounting the WC through a duct wall. The Campus WC has a pressed seating area that does not require a separate seat in vandal prone installations. However, a seat and lid can be fitted. Approval: Complies with BS EN 997 for 4.5 litre flushing. Also complies with the Australian and German test standards.
Without seat and lid
Dimensions 360 x 400 x 500 mm (W x H x D)
Without seat and lid
Dimensions 360 x 400 x 500 mm (W x H x D)
