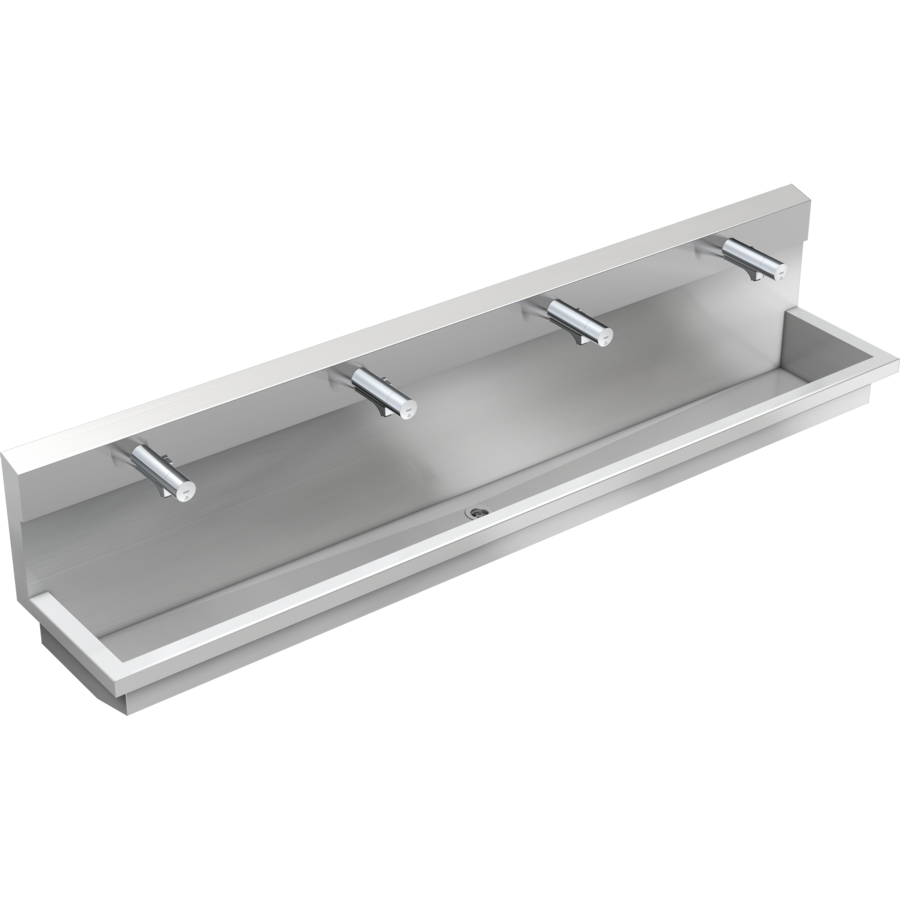

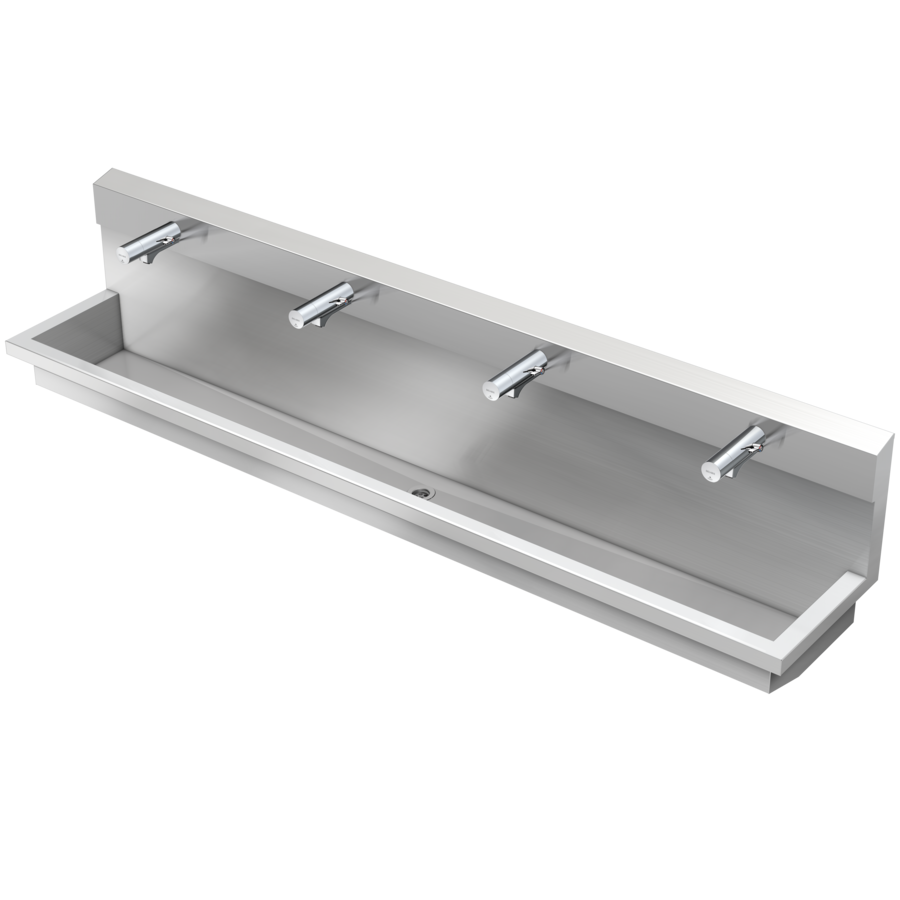

KWC PLANOX
Washbasin unit with electronic washbasin mixers

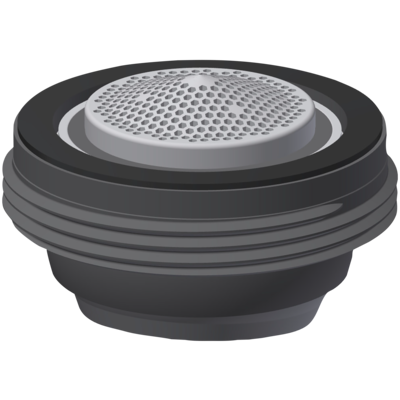

PLANOX washbasin unit with seamless welded trough, with four wash places, suitable for wall mounting, for connection to hot or cold water from the rear right or left. Stainless steel housing, satin finish, material thickness 1.5 mm. Centre waste, G 1 1/2 B flat perforated waste, including mounting material. Ready for connection, with fitted F5E-Mix electronic washbasin mixers, opto-electronically controlled, activated by hand movement. Control electronics, solenoid valve cartridge, 6 V lithium battery (CR-P2) and sensor in all-metal housing, polished chromium-plated brass. Temperature lever with adjustable, turn-proof temperature stop. Anti-theft aerator, SLIM design, with integrated flow rate controller 5.0 l/min. Activated hygiene flushing 24 hours after last activation, safety switch-off for continuous reflection and saving of statistical data. Parameterisation and communication possible via optional bidirectional remote control.

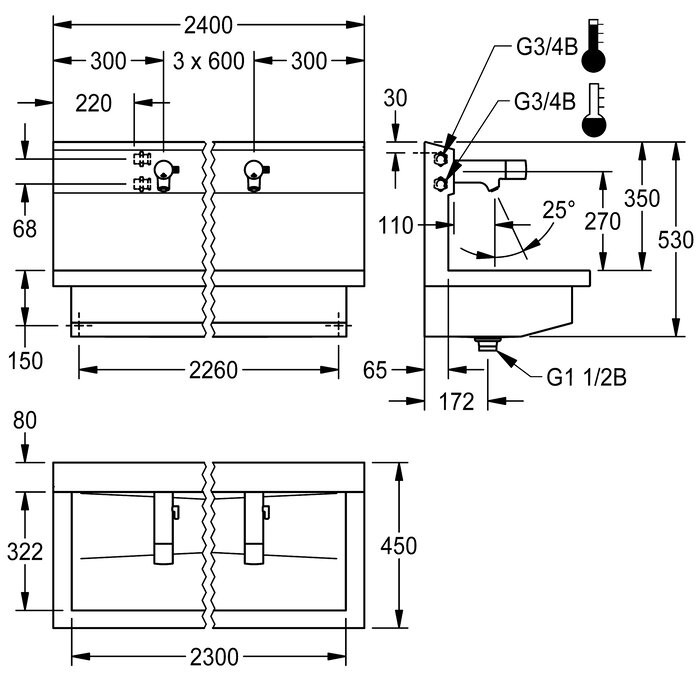

Dimensions 2400 x 530 x 440 mm (W x H x D)
Wash place width 600 mm
Dimensions 2400 x 530 x 440 mm (W x H x D)
Wash place width 600 mm
KWC PLANOX
Washbasin unit with electronic washbasin mixers
PLANOX washbasin unit with seamless welded trough, with four wash places, suitable for wall mounting, for connection to hot or cold water from the rear right or left. Stainless steel housing, satin finish, material thickness 1.5 mm. Centre waste, G 1 1/2 B flat perforated waste, including mounting material. Ready for connection, with fitted F5E-Mix electronic washbasin mixers, opto-electronically controlled, activated by hand movement. Control electronics, solenoid valve cartridge, 6 V lithium battery (CR-P2) and sensor in all-metal housing, polished chromium-plated brass. Temperature lever with adjustable, turn-proof temperature stop. Anti-theft aerator, SLIM design, with integrated flow rate controller 5.0 l/min. Activated hygiene flushing 24 hours after last activation, safety switch-off for continuous reflection and saving of statistical data. Parameterisation and communication possible via optional bidirectional remote control.
Dimensions 2400 x 530 x 440 mm (W x H x D)
Wash place width 600 mm
Dimensions 2400 x 530 x 440 mm (W x H x D)
Wash place width 600 mm
