KWC SIRIUS

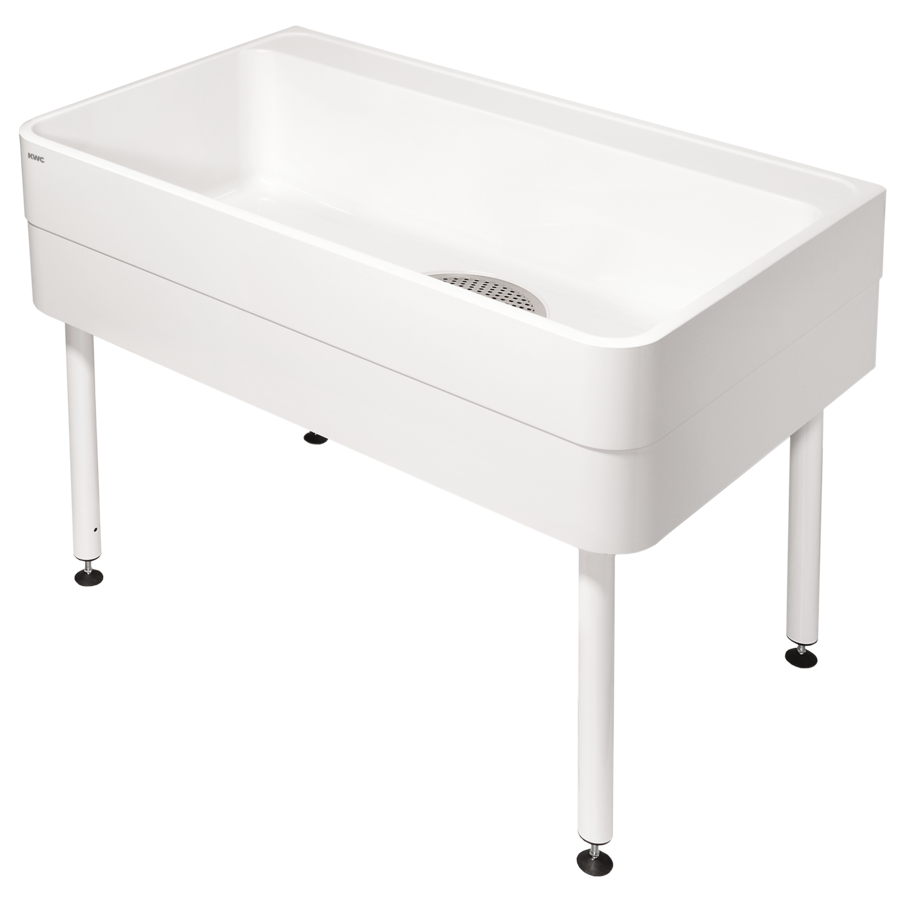

Workroom sink with tap ledge and sludge bucket

SIRW771

2000102722 - SIRW771 - SIRIUS - Workroom sink with tap ledge and sludge bucket

KWC SIRIUS

Workroom sink with tap ledge and sludge bucket

SIRW771 2000102722

Workroom sink made of MIRANIT resin-bonded mineral material with pore-free smooth surface (temperature-resistant up to 80 °C). Basin with integrated tap landing, without tap hole, with marking for drilling holes on the underside of the tap landing. Large inner radii, bottom of basin with 2° slope. Alpine white colour. Drain with under-screwed waste unit including removable sludge bucket, DN 40 overflow at waste unit and DN 25 waste outlet spigot made of stainless steel. Waste unit with DN 40 ball cock completely fitted with tubes. Waste unit rotatable by 90°. Welded substructure frame, powder-coated in basin colour, adjustable base feet. Mounting material included.

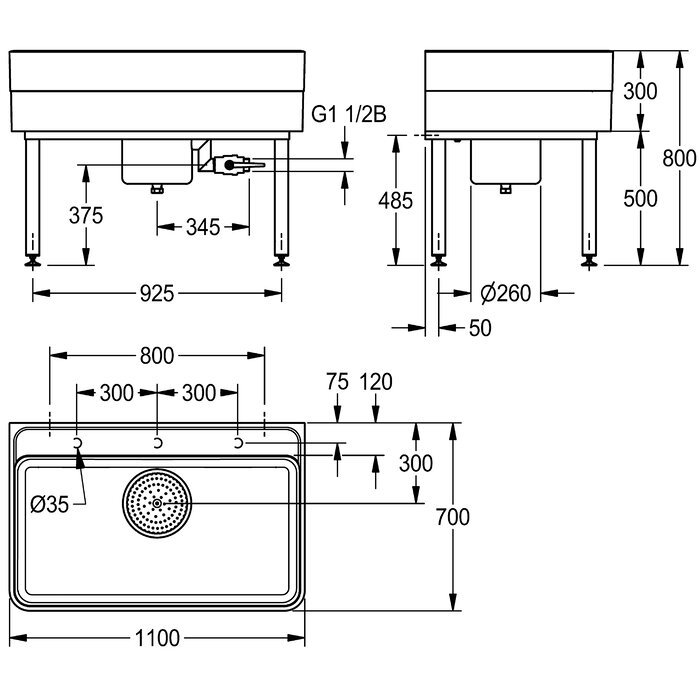

Dimensions 1100 x 300/800 x 700 mm (W x H x D)
Bowl dimensions 1060 x 283 x 555 mm (W x H x D)
1,100 mm 2,000 mm

Product Specifications

bowl - bowl height
283 mm
bowl finish
high polished
bowl - depth
555 mm
bowl - width
1,060 mm
brushes
Without brushes
drainer or storage
no
grid
no
material
mineral material
material code
Miranit
number of waste holes
1
overall depth
700 mm
overall height
800 mm
overall width
1,100 mm
overflow
no
rear upstand
no
wash riffle
no
spillway
no
splash back
no
sump
yes
sump basket
included
surface finish
coated
tap ledge
yes
type of mounting
wall and floor mounting
type of utility sink
cleaner sink
upper edge of basin height
800 mm
waste hole position
centre back
waste hole projection
300 mm
