KWC

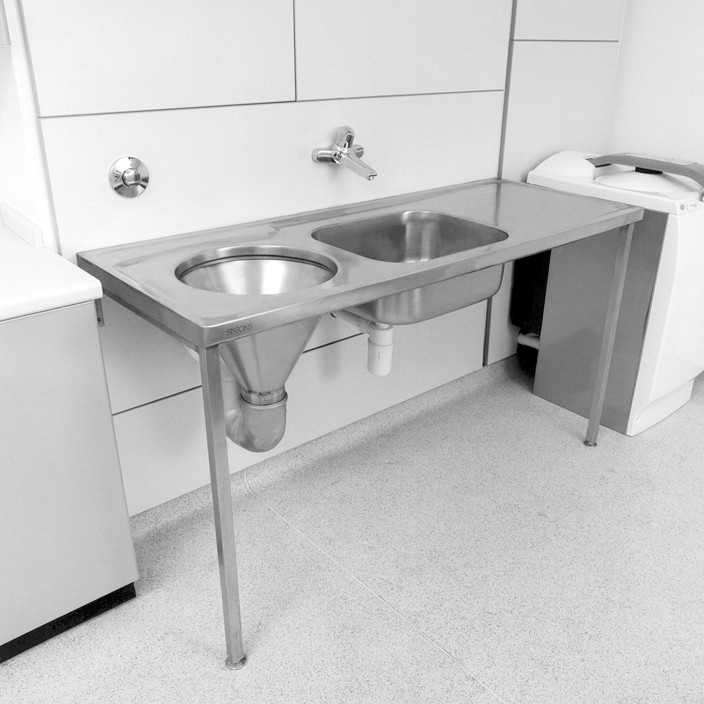

DUHS hospital disposal unit with washbasin and drainer
A DUHS hospital disposal unit manufactured from 1.2 mm thick, grade 1.4301 (304) stainless steel with a satin polish finish. The top is turned down on all four edges and incorporates a wet area recess. Fitted with a 110 mm dia. outlet sluice hopper at one end which can accept a P or S trap, (available as an extra). A washing up bowl, without waste, is positioned next to the sluice hopper and is prepared for a 38 mm waste outlet. Flush grated wastes are available as an extra. Plastic cisterns with a 9 litre capacity, and stainless steel cistern in 6, 7 or 9 litre capacity can be fitted using a 13 mm HP brass valve, plastic float and CP metal flushing lever handles. The unit should only be fed from a cistern or tank water supply. The unit can be mounted on either stainless steel cantilever brackets or front leg supports which give a working height of 900 mm and have adjustable feet that can be screwed to the floor for extra stability.
Manufactured in accordance with HTM 64 / HBN 00-10, Part C Standards
Right hand drainer
110 mm outlet
Top inlet for surface mounted cisterns
No tap holes

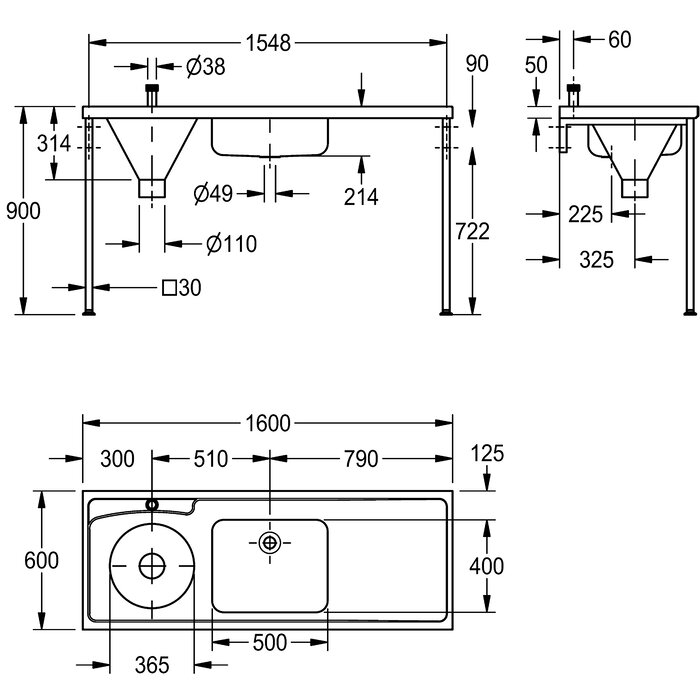

Dimensions 1600 x 600 x 300 mm (W x H x D)
Manufactured in accordance with HTM 64 / HBN 00-10, Part C Standards
Right hand drainer
110 mm outlet
Top inlet for surface mounted cisterns
No tap holes
Dimensions 1600 x 600 x 300 mm (W x H x D)
