KWC

Square Drain

SD1504G

3600003671 - SD1504G - ACCESSOIRES - Square Drain

KWC

Square Drain

SD1504G 3600003671

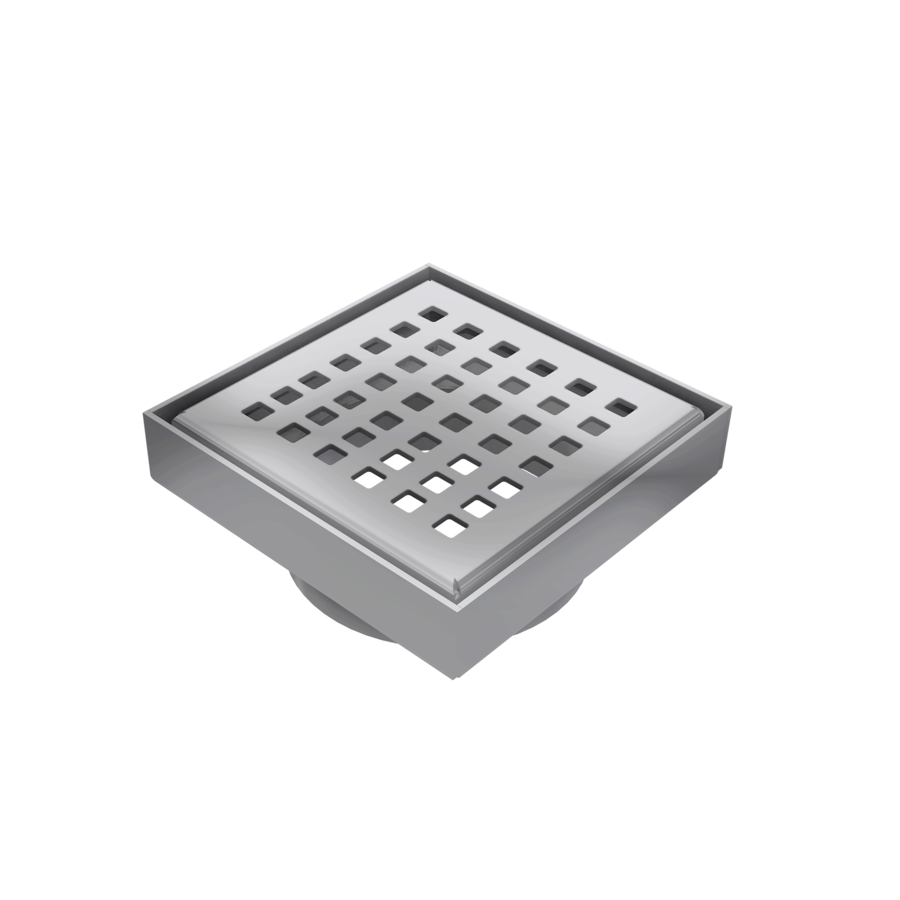

Square drain 150mmSQ with grated cover, stainless steel 304L (EN1.4307), surfaced satin finished, material thickness of 2.0mm, with 102mmØ (4") outlet.

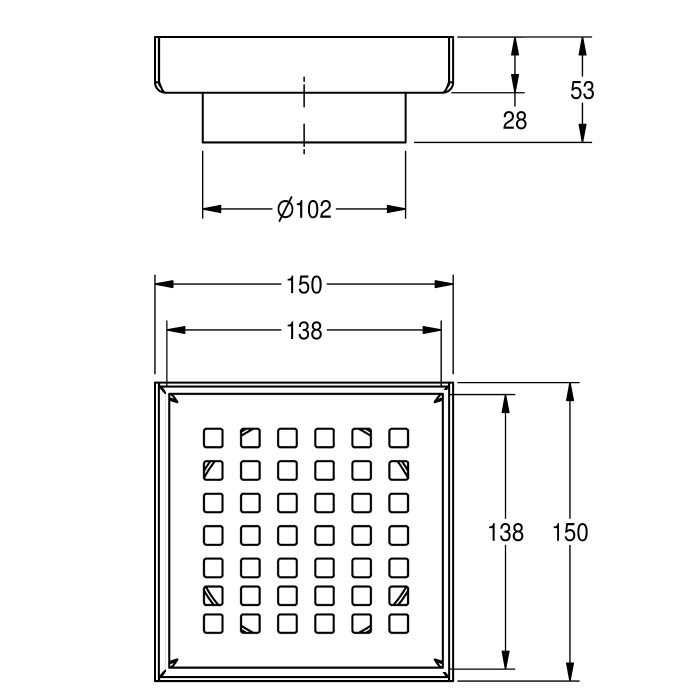

Dimensions 150 x 53 x 150 mm (W x H x D)
130 mm 150 mm

Product Specifications

material thickness
2 mm
material
stainless steel
material code
1.4301 Chrome Nickel steel V2A
overall depth
150 mm
overall height
128 mm
overall width
150 mm
surface finish
satin finished
drain outlet
4"
type of drain
grated cover
odor eliminator
no

Downloads

Technical Documents
