KWC

Electronic trap control

AQUA422N

3600002630 - AQUA422N - FLUSHING-TAPS-ELEC - Electronic trap control

KWC

Electronic trap control

AQUA422N 3600002630

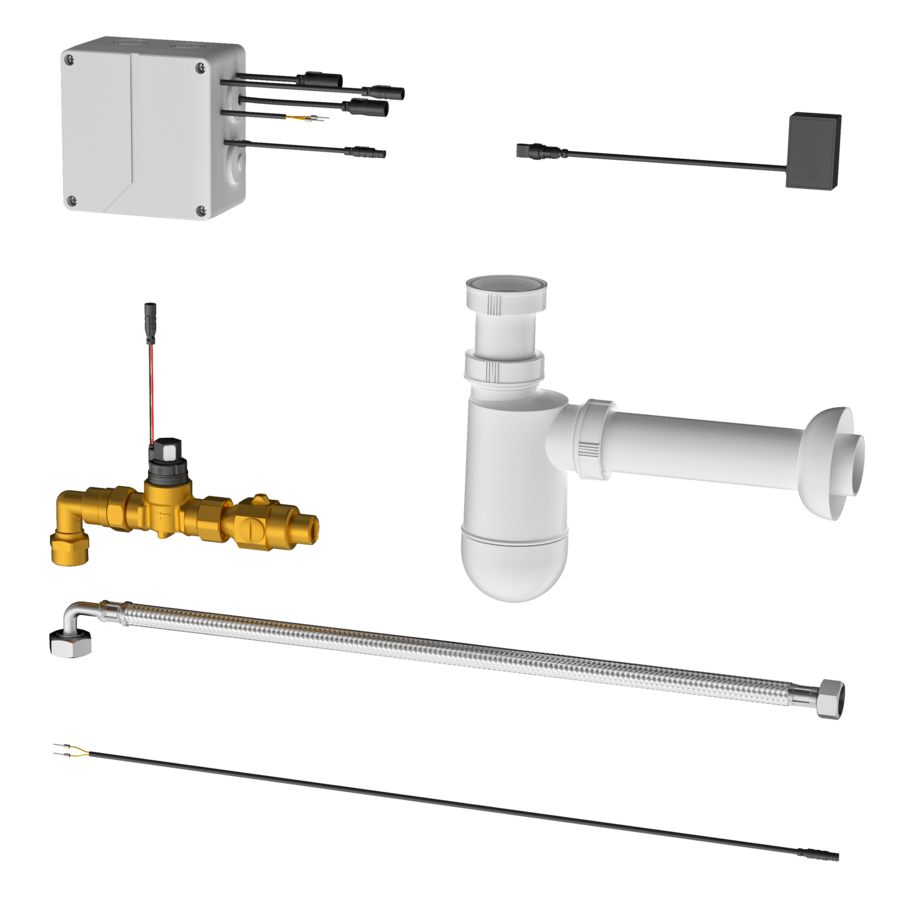

Electronic siphon control unit for invisible installation, for touch-free flushing of KWC stainless steel trough urinals. With connection hoses, solenoid valve, siphon with externally mounted sensor without water contact and electronic box including power supply unit and control with extended blocking time, 230 V AC.

Trap cover must be ordered separately.

Product Specifications

default automatic hygiene flus
24h after the last activity
Flushing volume adjustable
no
functional principle
electronic self-closing
diameter nominal
DN 15
inlet size
G 1/2 B
material fitting
synthetic
minimum flow pressure
1 bar
Parameterization
manual
power supply connection
230 V AC
Type of power supply
Transformer
protective system IP
IP68
sound insulation
no
with transformer/power supply
yes
type of flushing fitting
urinal flush valve
type of mounting
wall mounting
type of operation
sensor operation
type of sensor
radar-electronic sensor
water connection
threaded connection (external)
Basic colour
Other
