KWC AQUAFIX

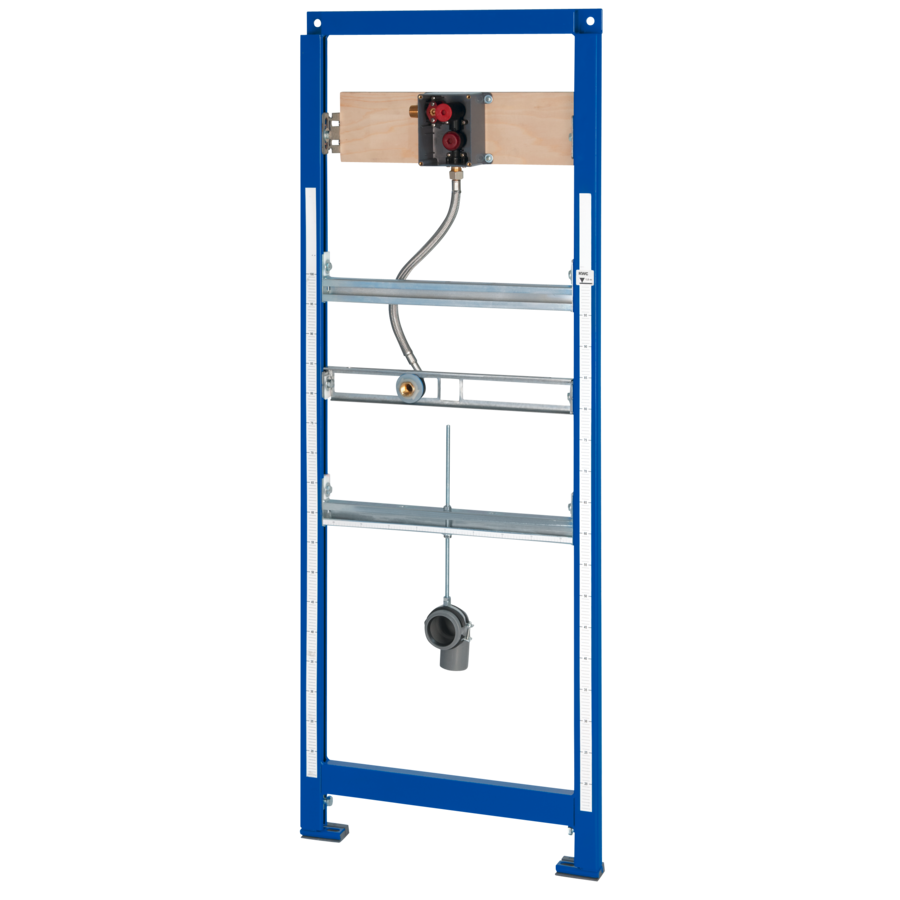

Installation frame with flush valve for in-wall installation for stainless steel urinals
AQUAFIX installation frame for stainless steel urinals, with fully assembled basic installation kit for in-wall urinal flush valves, manually operated or touch-free, opto-electronically controlled. Self-supporting, powder-coated, steel frame construction, TÜV tested, for installation of single units in dry-wall lining, adjustable height fixing as well as tap connection and outlet mount, sound-insulated wall duct with G 1/2, universal outlet bend DN 50, urinal fixing bolts, building protection and fixing materials.

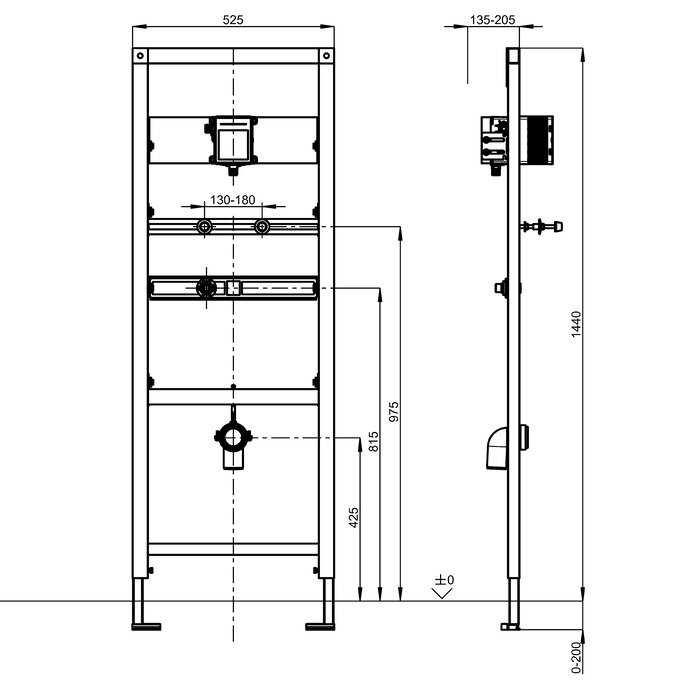

Dimensions 525 x 1440 mm (W x H)
Dimensions 525 x 1440 mm (W x H)
