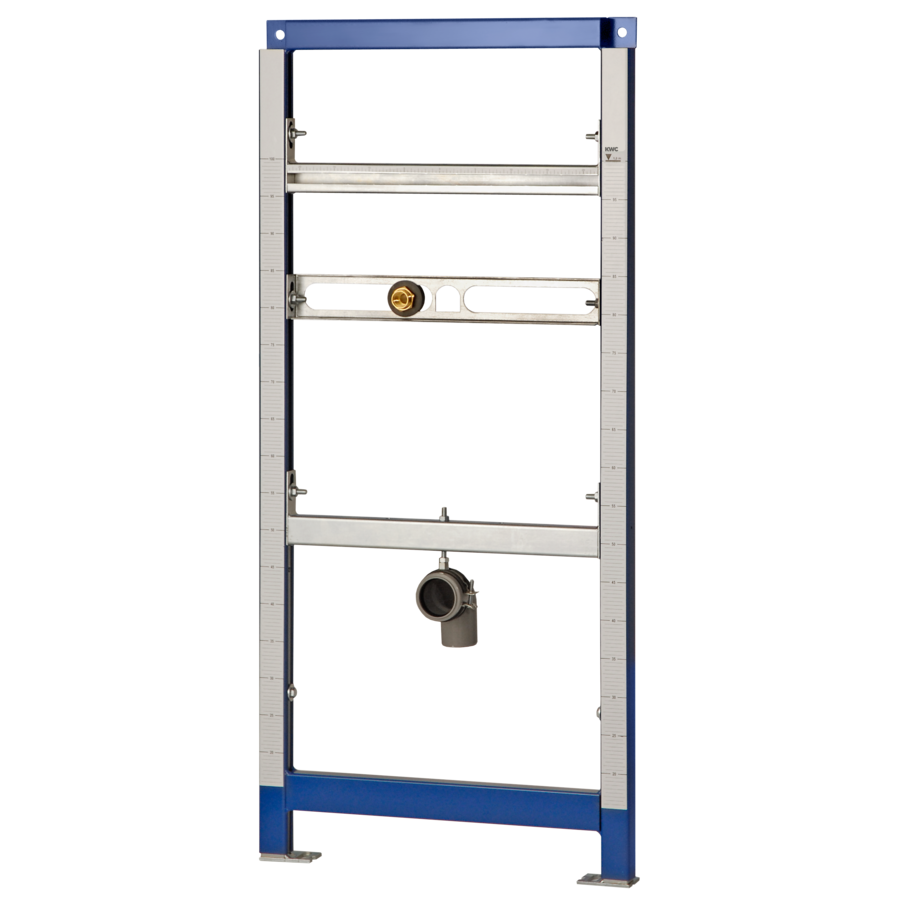

KWC AQUAFIX

Urinal installation frame for stainless steel urinals with siphon control

CMPX136

2030020069 - CMPX136 - AQUAFIX - AQUAFIX urinal installation frame for stainless steel urinals with siphon control

KWC AQUAFIX

Urinal installation frame for stainless steel urinals with siphon control

CMPX136 2030020069

AQUAFIX urinal installation frame for stainless steel urinals with siphon control, self-supporting powder coated steel frame construction, TÜV-tested, for individual mounting for dry-wall lining, height adjustable fastening of objects, height adjustable fitting connection and outlet mount, premounted for KWC urinal CMPX538, sound-insulated wall duct G 1/2, universal outlet bend DN 50, urinal fastening bolts, building protection and fixing material.

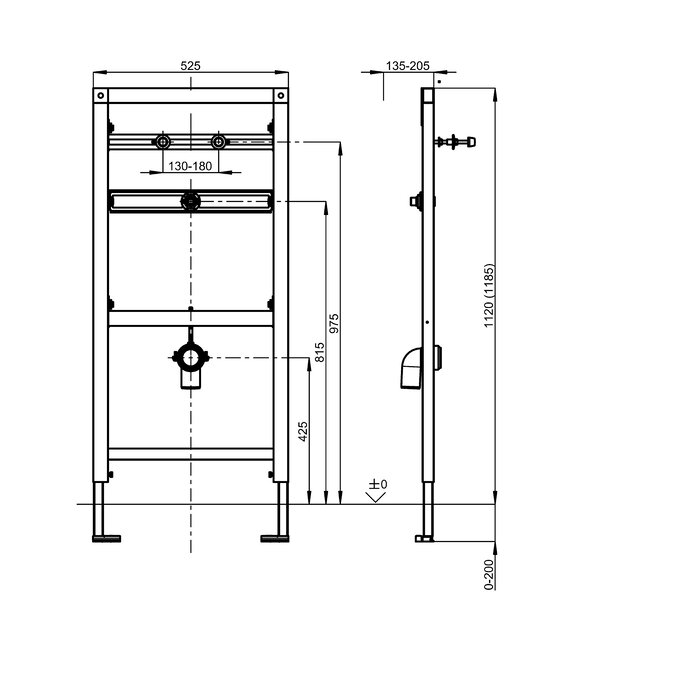

Dimensions 525 x 1120 mm (W x H)

Product Specifications

application
urinal flush valve
barrier-free
no
Built-in fitting model
Built-in section
height adjustment
200 mm
diameter nominal
DN 15
material
Steel
minimum wall thickness
135 mm
type of mixing
no
outlet size
DN 50
overall depth
135 mm
overall height
1,120 mm
overall width
525 mm
type
installation element
type of mounting
wall and floor mounting

Downloads

Technical Documents

BIM Files

Accessories

KWC AQUAFIX

Wall bracket

ZCMPX140
