KWC AQUAFIX

Urinal installation frame for waterfree urinals

CMPX137

2030020070 - CMPX137 - AQUAFIX - AQUAFIX urinal installation frame for waterfree urinals

KWC AQUAFIX

Urinal installation frame for waterfree urinals

CMPX137 2030020070

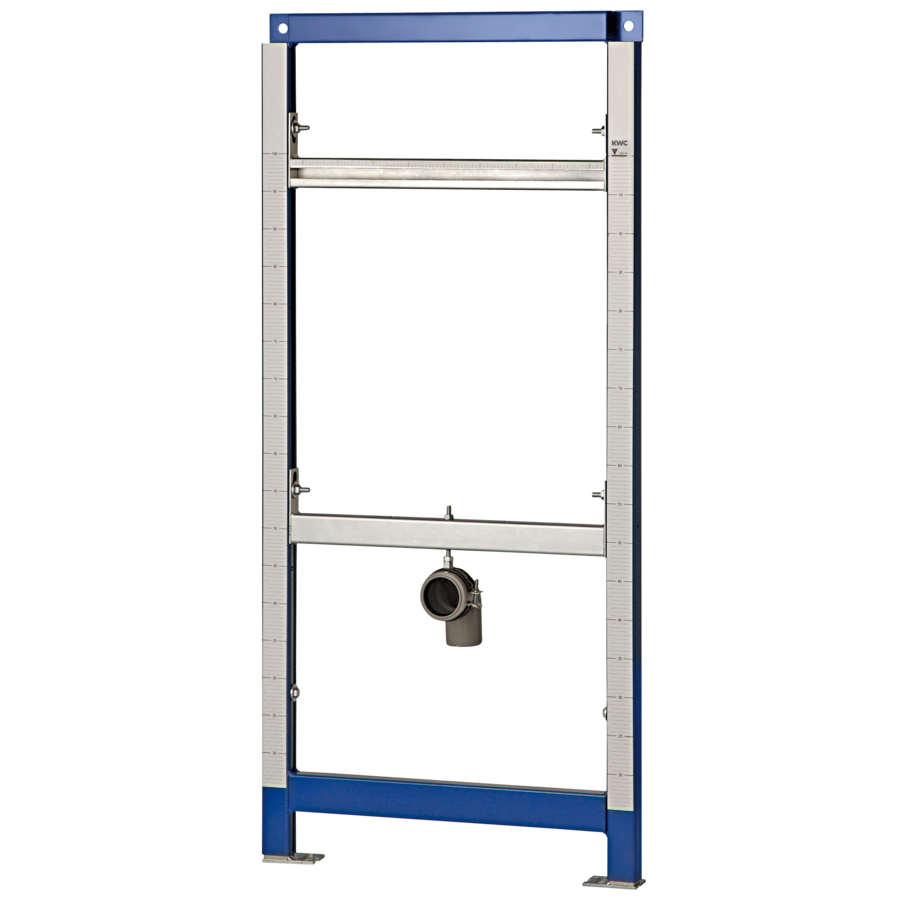

AQUAFIX urinal installation frame for waterfree urinals, self-supporting powder coated steel frame construction, TÜV-tested, for individual mounting for dry-wall lining, height adjustable fastening of objects and outlet mount, premounted for KWC urinal CMPX538WF, universal outlet bend DN 50, urinal fastening bolts, building protection, fixing material and mounting instruction.

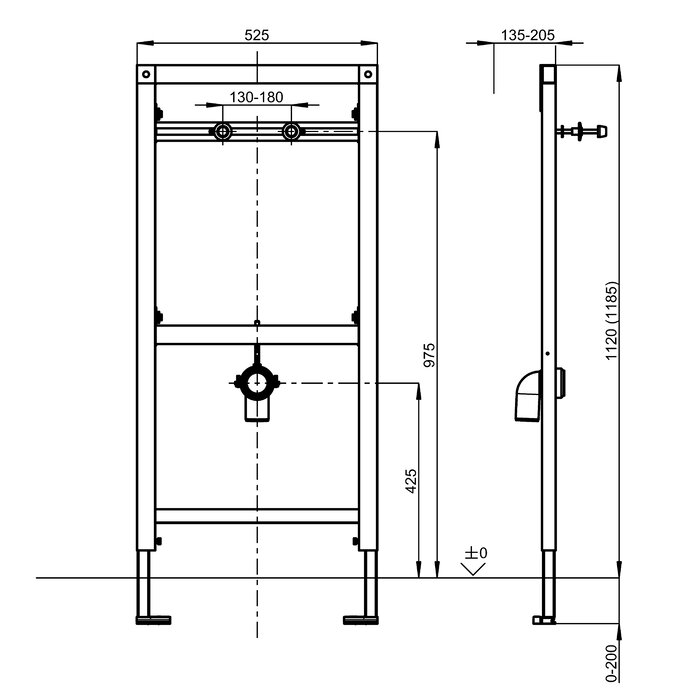

Dimensions 525 x 1120 mm (W x H)

Product Specifications

application
urinal flush valve
Built-in fitting model
Built-in section
height adjustment
200 mm
material
Steel
type of mixing
no
outlet size
DN 50
overall depth
135 mm
overall height
1,120 mm
overall width
525 mm
type
installation element
type of mounting
wall and floor mounting

Downloads

Technical Documents

BIM Files

Accessories

KWC AQUAFIX

Wall bracket

ZCMPX140
