KWC CAMPUS

Floor standing WC pan

CMPX597S

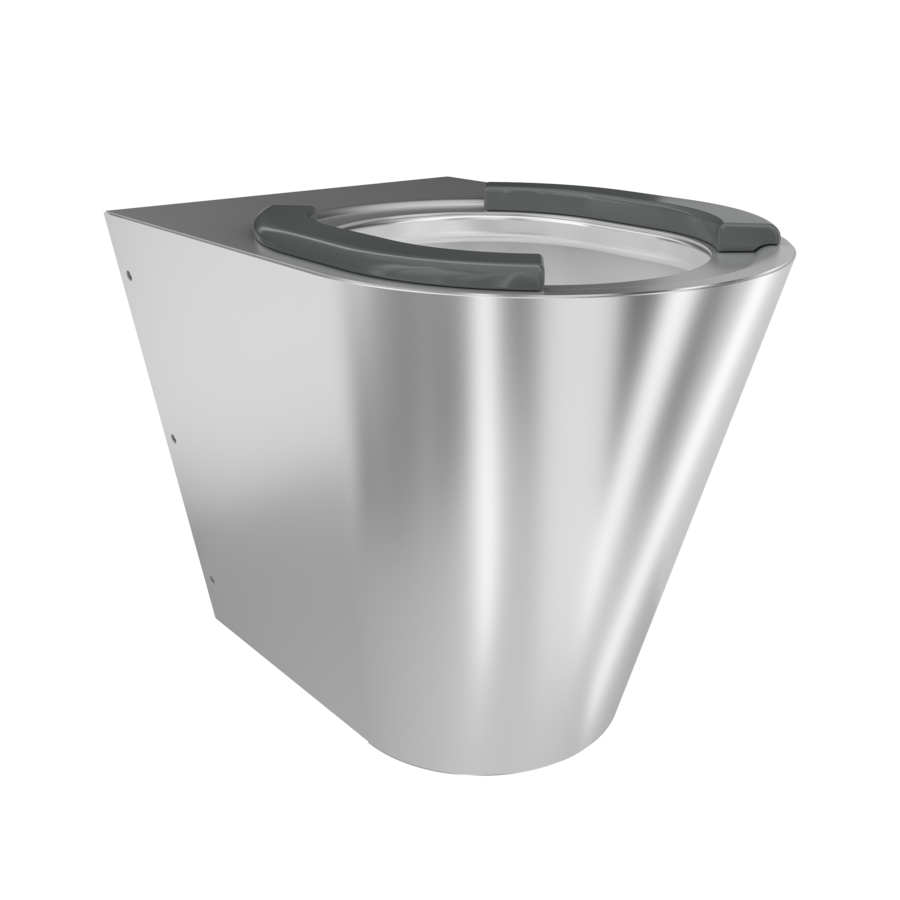

2000100154 - CMPX597S - CAMPUS - CAMPUS Floor standing WC pan

KWC CAMPUS

Floor standing WC pan

CMPX597S 2000100154

Wall hung WC pan with shroud to the floor, stainless steel, surface satin finished, material thickness 1,5 mm, flushing certificated to EN 997, concealed flushing rim with min. 4 litre flushing capacity, with a shrouded 100 mm diameter horizontal 'P' trap outlet, pressed seat area tapered towards centre, all edges curved, fixing with included mounting plate conform to EN 33, includes safety screws. 4 litre flush EN997 approved.

With seat pads

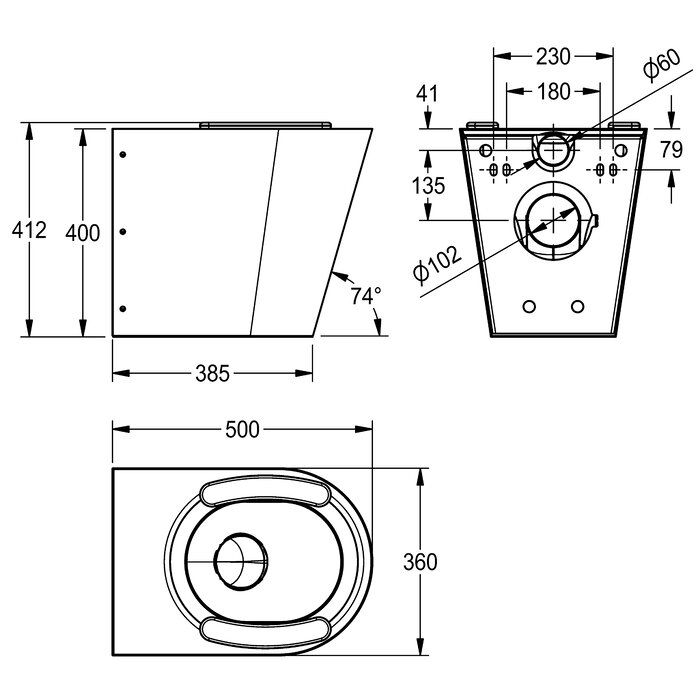

Dimensions 360 x 412 x 500 mm (W x H x D)

Product Specifications

inlet size
DN 55
material
stainless steel
material code
1.4301 Chrome Nickel steel V2A
material thickness
1.5 mm
minimum flushing capacity
4 Liter
outlet size
DN 100
overall depth
500 mm
overall height
412 mm
overall width
360 mm
toilet seat colour
grey
surface finish
satin finished
type of mounting
wall mounting
type of toilet seat
synthetic seat pad
type of WC
wall hung
