KWC CAMPUS

Urinal

CMPX538RS

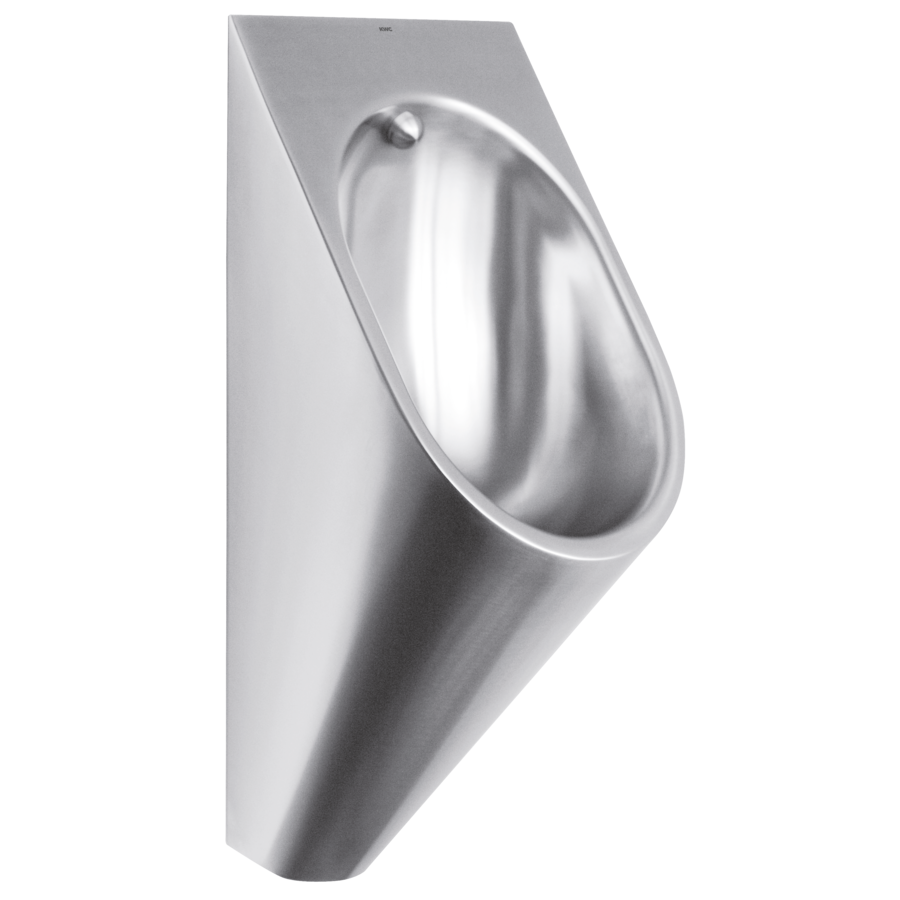

2000103380 - CMPX538RS - CAMPUS - CAMPUS Urinal

KWC CAMPUS

Urinal

CMPX538RS 2000103380

Single urinal for wall mounting, stainless steel, surface satin finished, material thickness 1.2 mm, oval bowl, hidden horizontal outlet towards wall, mounting and fixing conform to EN 80, hidden screws, included trap DN 50, included mounting bracket and domed waste.

With stainless steel spreader 1/2" and ring sensor

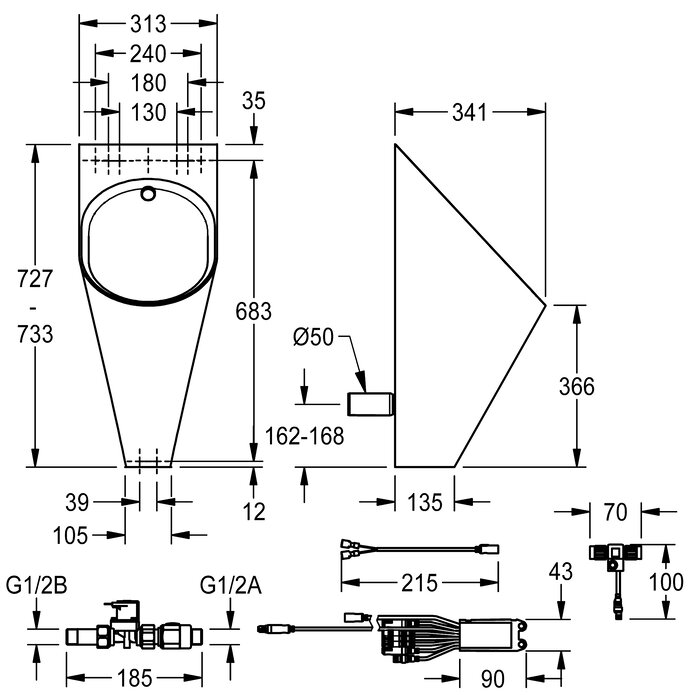

Dimensions 313 x 732 x 341 mm (W x H x D)
domed waste waterfree flat perforated wast perforated waste

Product Specifications

inlet size
G 1/2 B
material
stainless steel
material code
1.4301 Chrome Nickel steel V2A
material thickness
1.2 mm
outlet size
DN 50
overall depth
341 mm
overall height
732 mm
overall width
313 mm
siphon included
yes
surface finish
satin finished
type of flushing
water flushed
type of mounting
wall mounting
type of urinal
single urinal
type of waste kit
perforated waste
water inlet
concealed
water outlet
concealed

Downloads

Technical Documents

BIM Files
