KWC CONTINA

Hinged grab rail

CNTX73B

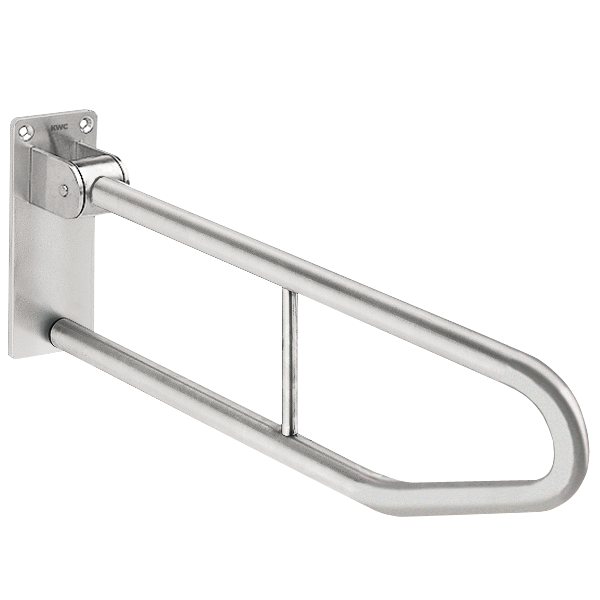

2000103670 - CNTX73B - CONTINA - CONTINA hinged grab rail

KWC CONTINA

Hinged grab rail

CNTX73B 2000103670

Foldable grab rail without toilet roll holder for wall mounting, stainless steel, surface satin finished, rough polishing for better surface feel, 32 mm pipe diameter, material thickness 1.2 mm, prevention against unmeant folding, gum rubber stop absorber, 4 mm thick mounting plate with three fixing holes, includes stainless steel screws and dowels.

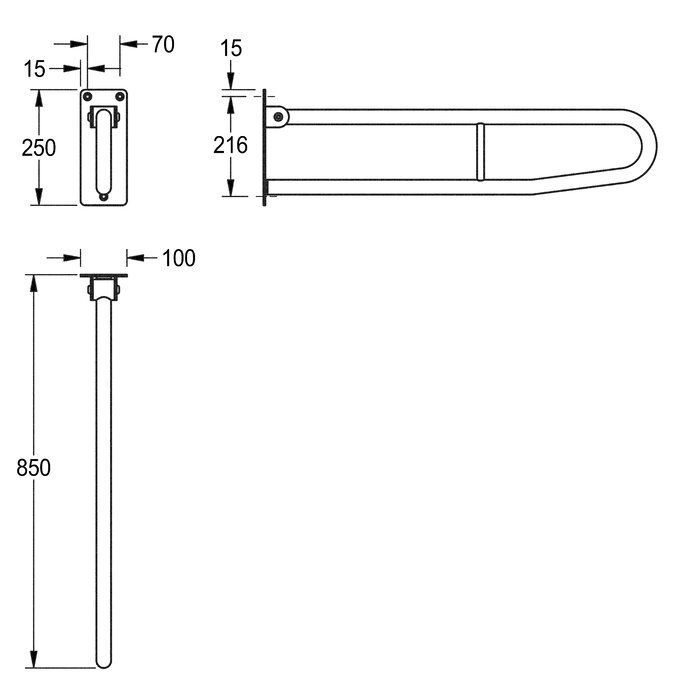

Dimensions 100 x 250 x 850 mm (W x H x D)
Complying with Norm ÖNORM B 1600:2017 (when upfolded, bar shows max. 20 cm towards room)

Product Specifications

back
no
bending angle
180 Degree
colour
no colour
number of fixing points
3
hidden fixing
no
hinged
yes
material
stainless steel
material code
1.4301 Chrome Nickel steel V2A
material thickness
1.2 mm
overall depth
850 mm
overall height
250 mm
overall width
100 mm
pipe diameter
32 mm
surface finish
satin finished
type of fixing
screw
type of grab rail
support bar
type of mounting
wall mounting
