KWC F3S

Self-closing straight-way valve

F3SV2003

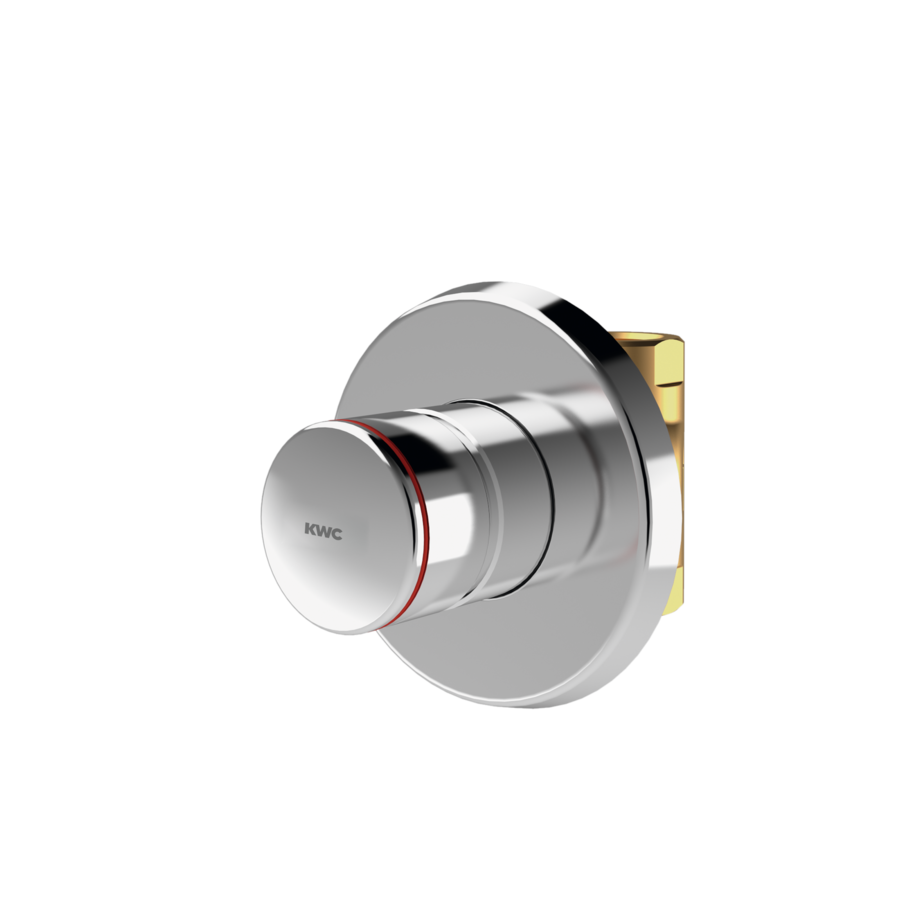

2030034416 - F3SV2003 - F3S - F3S self-closing straight-way valve

KWC F3S

Self-closing straight-way valve

F3SV2003 2030034416 EAN/GTIN: 7612982236679

F3S self-closing straight-way valve DN 15 for in-wall mounting with noise-reducing styrene cladding, for shower facilities. Self-closing functional part, hydraulically controlled, piston-free design, self-closing, stepless adjustment of flow duration. For connection to pre-mixed hot water or cold water. Casing including changeable valve seat, with internal thread G 1/2, visible parts high-polished, chromium-plated brass. With rosette, depth adjustability 15 mm.

Product Specifications

additional connections
false
with backflow preventer
false
Built-in fitting model
Built-in + finishing section
calculation flow rate cold wat
0.15 l/s
circulation
false
connection with pay water disp
not possible
with filter
false
adjustable flow time
true
functional principle
hydraulic self-closing
for hand shower
false
hygiene flushing
false
diameter nominal
DN 15
inlet size
G 1/2
Locking mechanism
Top section, non-ceramic
material fitting
brass-look
maximum flow time
35 Seconds
minimum flow pressure
1 bar
minimum flow time
5 Seconds
type of mixing
false
with rosettes/cover plate
true
protective shutdown
false
shower pipe draining
false
sound insulation
false
surface finish fitting
chromed
surface treatment fitting
polished
temperature limit
false
thermal disinfection
false
type of mounting
in-wall installation without b
type of operation
manual operation
type of shower
in-wall fitting
volume flow rate at 3 bar
0.2 l/s
water connection
threaded connection (internal)
position of water connection
from bottom
Accent colour
none
Basic colour
chrome-look (glossy)
