KWC F3S

WC flush valve for in-wall installation

F3SF4003

3600005979 - F3SF4003 - F3S - F3S WC flush valve for in-wall installation

KWC F3S

WC flush valve for in-wall installation

F3SF4003 3600005979

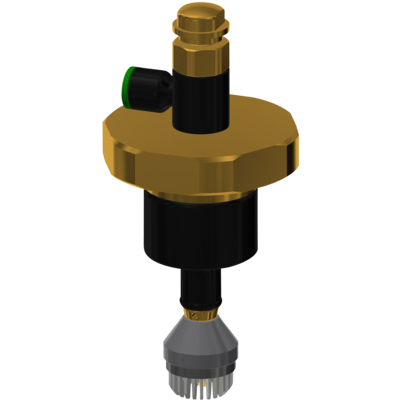

F3S WC flush valve DN 20 as finished installation kit for in-wall installation in the basic installation kit, fitting group I. Self-closing upper component hydraulically controlled, piston-free design, automatic and backlash-free closing. Automatic flush flow regulation and adjustable flush water volume. All-metal construction, visible parts polished chrome-plated. Holding frame including profile seal, stainless steel cover plate 190 x 245 mm with covered screw fixing, pre-fitted push-button actuation, hydraulic control lines and mounting material. Depth adjustability 20 mm.

Product Specifications

Built-in fitting model
Finishing section
calculation flow rate cold wat
1 l/s
Cover plate height
245 mm
Cover plate width
190 mm
Flushing volume adjustable
yes
functional principle
hydraulic self-closing
diameter nominal
DN 20
material casing
stainless steel
material code casing
1.4301 Chrome Nickel steel V2A
material fitting
brass-look
maximum flow pressure
4 bar
maximum flush water volume
78 Liter
minimum flow pressure
1.2 bar
minimum flush water volume
60 Liter
overall height
245 mm
overall width
190 mm
Parameterization
manual
protective shutdown
no
sound insulation
I-
surface finish casing
satin finished
surface finish fitting
raw
type of flushing fitting
WC flush valve
type of mounting
in-wall installation with box
type of operation
manual operation
water connection
threaded connection (external)
Basic colour
stainless steel-look
