KWC AQUAFIX

Installation frame with WC flush valve for in-wall installation

AQFX0012

3600005980 - AQFX0012 - AQUAFIX - AQUAFIX installation frame with WC flush valve for in-wall installation

KWC AQUAFIX

Installation frame with WC flush valve for in-wall installation

AQFX0012 3600005980

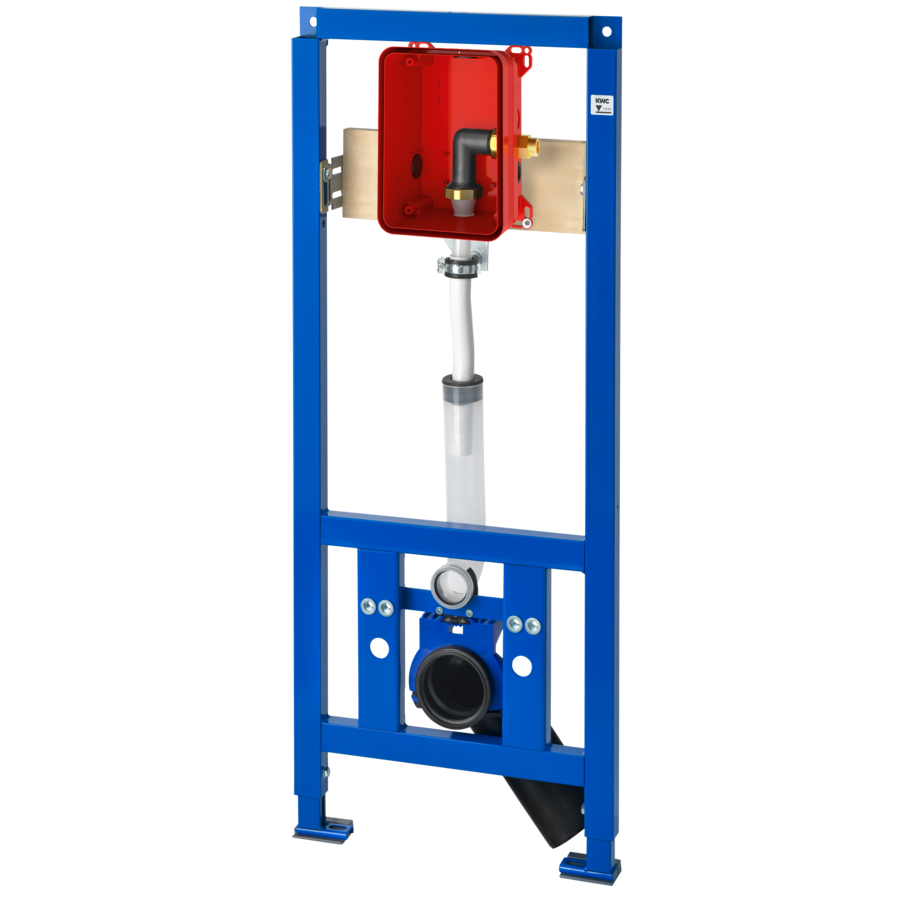

AQUAFIX installation frame for wall-mounted toilet bowls, with pre-fitted basic installation kit for KWC WC flush valves for in-wall installation. Self-supporting, powder-coated steel frame construction, TÜV tested, for installation of single units in dry wall lining, mounting bracket 4-fold adjustable for 90 / 100 mm toilet-connecting elbow, complete with inlet and outlet tap kit, retaining bolts for toilet, building protection and fixing materials.

Dimensions 450 x 1120 mm (W x H)

Product Specifications

application
WC flush valve
barrier-free
no
Built-in fitting model
Built-in section
diameter nominal
DN 20
material
Steel
type of mixing
no
outlet size
DN 100
overall depth
205 mm
overall height
1,120 mm
overall width
450 mm
type
installation element
type of mounting
wall and floor mounting

Downloads

Technical Documents

Accessories

KWC F5E

WC flush valve for in-wall installation

F5EF4008

KWC F3S

WC flush valve for in-wall installation

F3SF4002

KWC F5E - A3000 open

Electronic WC flush valve for in-wall installation

F5EF4005

KWC AQUAFIX

Wall bracket

ZCMPX140
