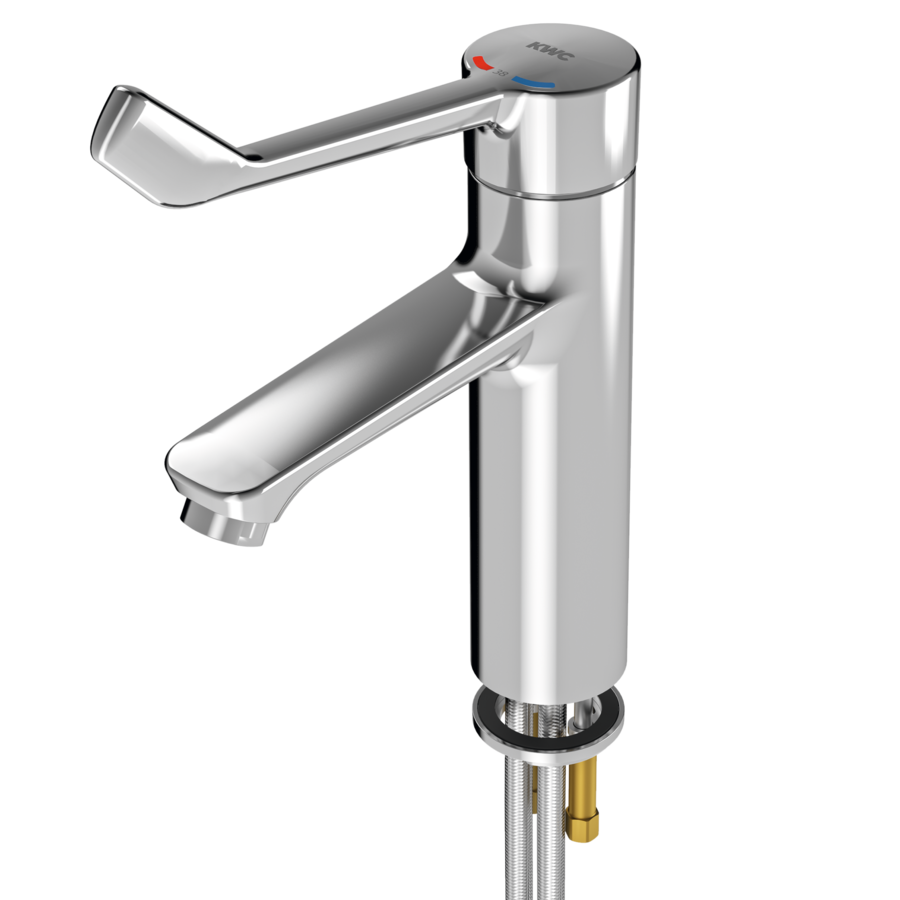

KWC F4LT-Med

Thermostatic single lever mixer

F4LT1010

2030072403 - F4LT1010 - F4 - F4LT-Med thermostatic single lever mixer

KWC F4LT-Med

Thermostatic single lever mixer

F4LT1010 2030072403

F4LT-Med thermostatic single lever mixer as DN 15 pillar mixer for sanitary facilities in the healthcare and nursing sector, lever length 172 mm. Thermostat-controlled mixer cartridge with expansion element and active scald protection, fail-safe against backflow, as well as adjustable and turn-proof temperature stop, and ceramic disc technology. Without backflow preventer for optimised drinking water hygiene. Lever cap ergonomically designed in closed construction for contactless lever actuation. For connection to hot water and cold water via hoses, includes strainers. Tap optimised for cleaning, all-metal construction, polished chromium-plated low-lead brass (lead proportion ≤ 0.2%), with volume-reduced water flow without nickel coating. Laminar jet controller with integrated flow rate controller 8.0 l/min, projection 135 mm.
hose (gland nut) pipe

Product Specifications

compatible A3000 open
no
depressurised
no
adjustable flow time
no
functional principle
manual
diameter nominal
DN 15
inlet size
G 3/8
Locking mechanism
Top section, ceramic
material fitting
brass-look
minimum flow pressure
1 bar
type of mixing
with thermostat

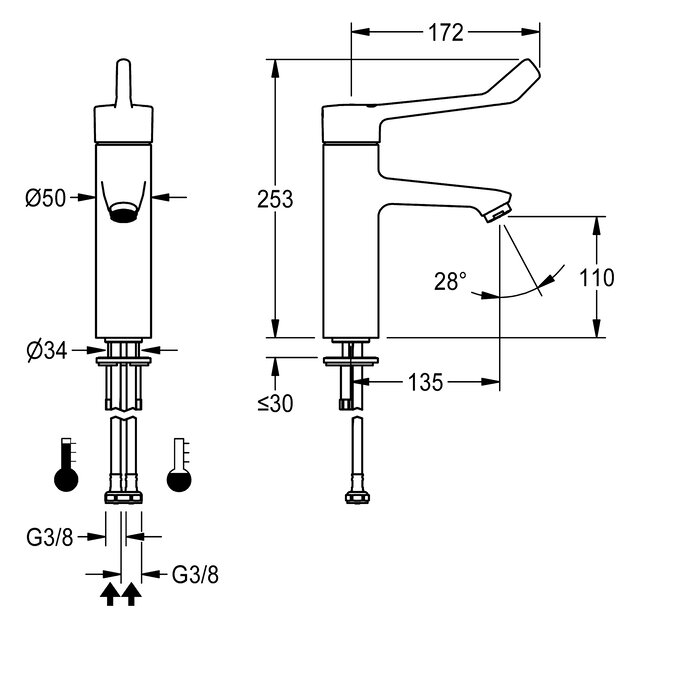

overall height
253 mm
overall width
50 mm
Pop-up waste set
no
Spout
fixed
spout projection
135 mm
surface finish fitting
chromed
surface treatment fitting
polished
temperature limit
yes
type of mounting
tap hole
type of operation
manual operation
type of tap
pillar tap
volume flow rate at 3 bar
0.13 l/s
water connection
hose (gland nut)
Accent colour
none
Basic colour
chrome-look (glossy)
