KWC F5

Smart urinal sensor

F5EF3009

2030067531 - F5EF3009 - F5E - F5 smart urinal sensor

KWC F5

Smart urinal sensor

F5EF3009 2030067531

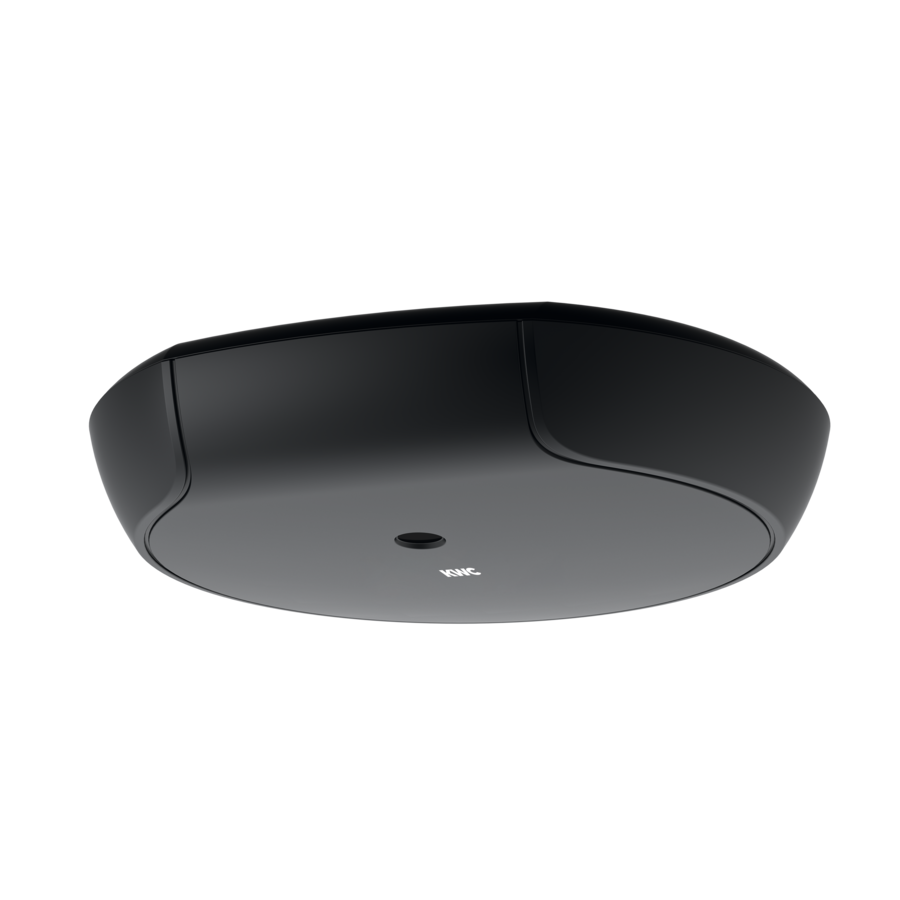

F5 smart urinal sensor for overhead installation for central flushing of urinal systems in a room. Control module in black plastic housing, for multiple simultaneous user detection and touch-free triggering of flushing programmes for connected F5 smart urinal units via wireless communication. Option to connect up to 20 F5 smart urinal units. The area covered by the sensors is dependent on the ceiling height. Activated, washing area-dependent hygiene flushing 24 hours after last activation and saving of statistical data. Commissioning and flushing programme selection and parametrisation for each smart urinal unit via the necessary app, installed on Bluetooth®-enabled mobile devices from Android 7 or iOS 11.

Connection voltage 110–240 V AC, 50/60 Hz
Protection class IP20
Area covered 5 x 2.5 m at ceiling height 3 m

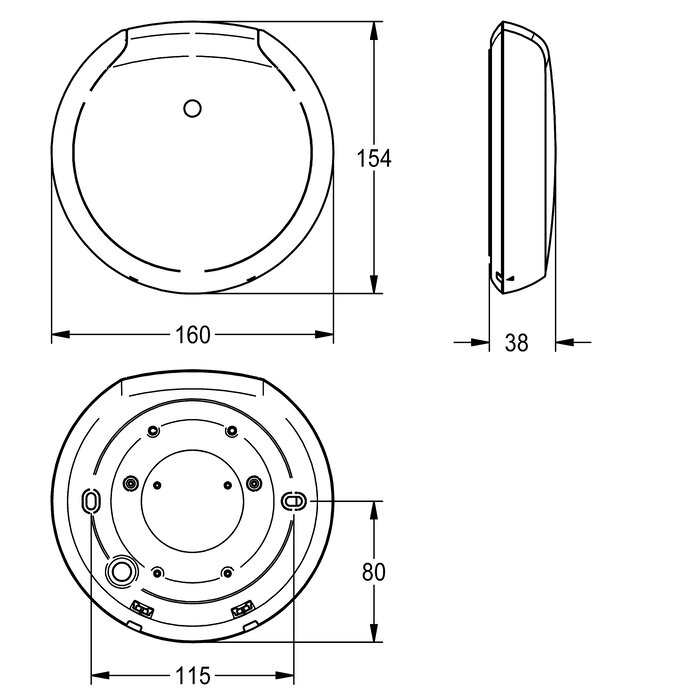

Housing dimensions 160 x 35 mm (D x H)
white black

Product Specifications

Parameterization
app
type of mounting
ceiling mounting
Basic colour
black
