KWC F5E-Therm

Electronic thermostatic in-wall mixer

F5ET2031

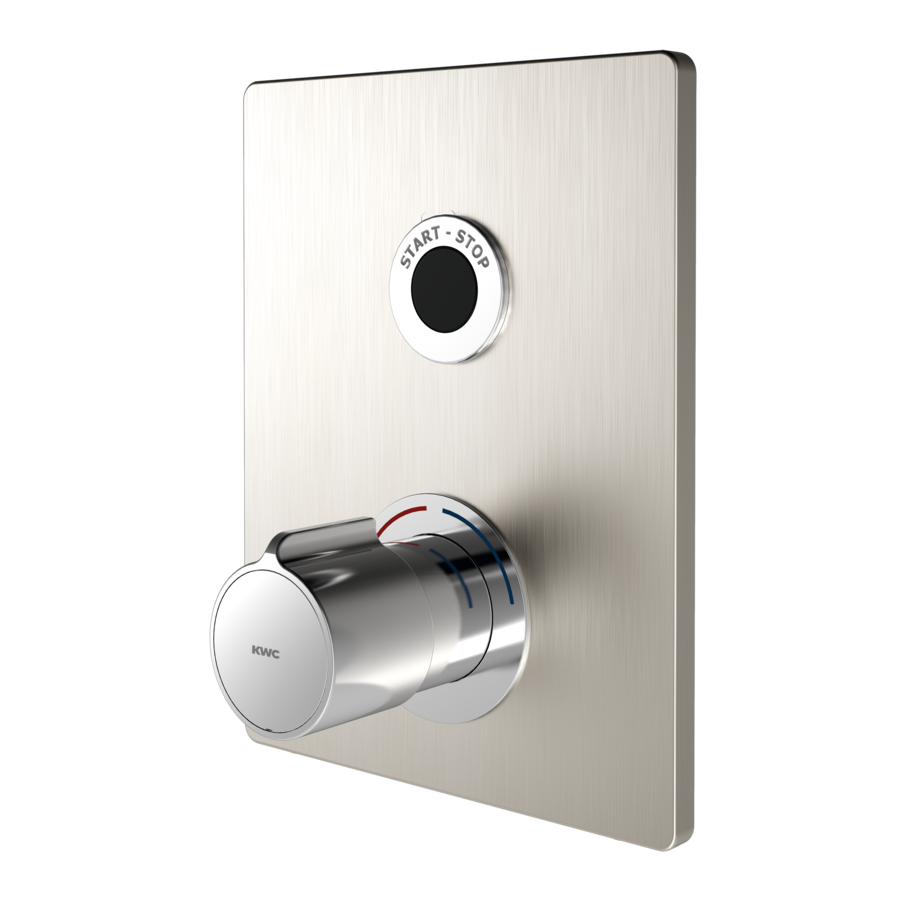

2030067151 - F5ET2031 - F5E - F5E-Therm electronic thermostatic in-wall mixer

KWC F5E-Therm

Electronic thermostatic in-wall mixer

F5ET2031 2030067151

F5E-Therm thermostatic mixer DN 15 as finished installation kit for wall mounting in mounting material, for shower facilities. Electrically controlled, connects to hot water and cold water. Function block with integrated solenoid valve cartridge, thermostat and mechanism for two optional bypass solenoid valve cartridges for separate rinsing of the cold-water line and implementation of program-controlled thermal disinfection as well as for separate sampling of cold or hot water. Thermostat with metal handle with adjustable and turn-proof temperature stop and option for manual thermal disinfection. All-metal construction, visible parts high-polished, chrome-plated. With holding frame and profile seal, stainless-steel cover plate 190 x 245 mm with covered screw fixing including sensor with control electronics, rosette, backflow preventers and strainers. Depth adjustability 25 mm. Activated hygiene flushing 24 hours after last activation and storage of statistical data. With option for parameterization and communication via optional, bidirectional remote control.

Optionally for battery operation with 6 V lithium battery (CR-P2) per fitting or separate power supply via power supply unit 6.75 V/12 V DC or AQUA 3000 open system accessories.

Battery compartment including battery or power supply unit with extension cable must be ordered separately.

Product Specifications

additional connections
no
with backflow preventer
yes
Built-in fitting model
Finishing section
calculation flow rate cold wat
0.15 l/s
calculation flow rate hot wate
0.15 l/s
circulation
no
compatible A3000 open
yes
connection with pay water disp
via electronic module

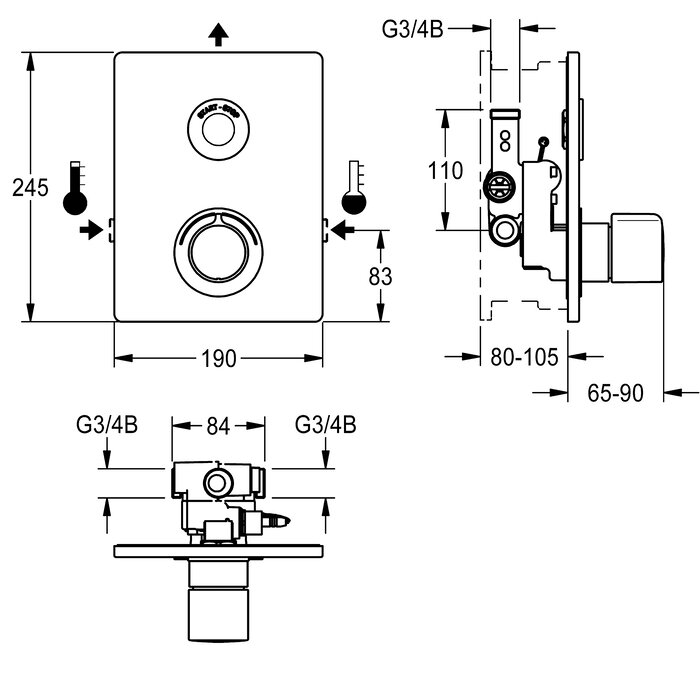

Cover plate height
245 mm
Cover plate width
190 mm
default automatic hygiene flus
24h after the last activity
default flow time
30 Seconds
with filter
yes
adjustable flow time
yes
functional principle
electronic self-closing
for hand shower
no
hygiene flushing
yes
diameter nominal
DN 15
inlet size
G 3/4 B
Locking mechanism
Top section, non-ceramic
material casing
stainless steel
material fitting
brass-look
maximum flow time
255 Seconds
minimum flow pressure
1 bar
minimum flow time
1 Seconds
type of mixing
with thermostat
Parameterization
remote control
power supply connection
6,75 / 12 V DC / A3000 open
position of power connection
from top
power consumption
1.5 Voltampere
Type of power supply
Transformer
with rosettes/cover plate
yes
protective shutdown
yes
shower pipe draining
no
sound insulation
no
surface finish casing
satin finished
surface finish fitting
chromed
surface treatment fitting
polished
temperature limit
yes
thermal disinfection
yes
with transformer/power supply
no
type of mounting
in-wall installation with box
type of operation
sensor operation
type of sensor
opto-electronic sensor
type of shower
in-wall fitting
Volume flow rate bypass PWH
0.05 l/s
volume flow rate at 3 bar
0.23 l/s
water connection
threaded connection (external)
position of water connection
from side
Accent colour
chrome-look (glossy)
Basic colour
stainless steel-look
