Product Specifications

additional connections

no

with backflow preventer

yes

circulation

no

compatible A3000 open

no

connection with pay water disp

not possible

with filter

yes

adjustable flow time

no

functional principle

manual

for hand shower

no

hygiene flushing

prepared

diameter nominal

DN 15

inlet size

G 1/2 A

Locking mechanism

Top section, ceramic

material casing

stainless steel

material code casing

1.4301 Chrome Nickel steel V2A

material fitting

brass-look

minimum flow pressure

1 bar

type of mixing

with thermostat

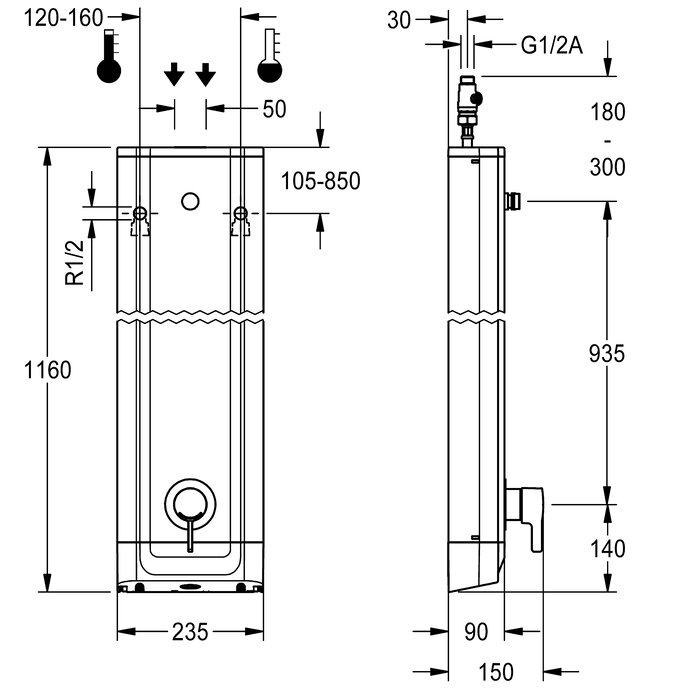

overall depth

90 mm

overall height

1,160 mm

overall width

235 mm

with rosettes/cover plate

yes

protective shutdown

no

shower pipe draining

no

Shower head

for separately shower head

with shower set

no

sound insulation

no

surface finish casing

satin finished

surface finish fitting

chromed

surface treatment fitting

polished

temperature limit

yes

thermal disinfection

yes

type of mounting

wall mounting

type of operation

manual operation

type of shower

shower panel

volume flow rate at 3 bar

0.15 l/s

water connection

hose (gland nut)

position of water connection

from top / backside

with soap dish

no

Accent colour

chrome-look (glossy)

Basic colour

stainless steel-look
