KWC HEAVY-DUTY

Urinal

HDTX538

2000101023 - HDTX538 - HEAVYDUTY - HEAVY-DUTY urinal

KWC HEAVY-DUTY

Urinal

HDTX538 2000101023

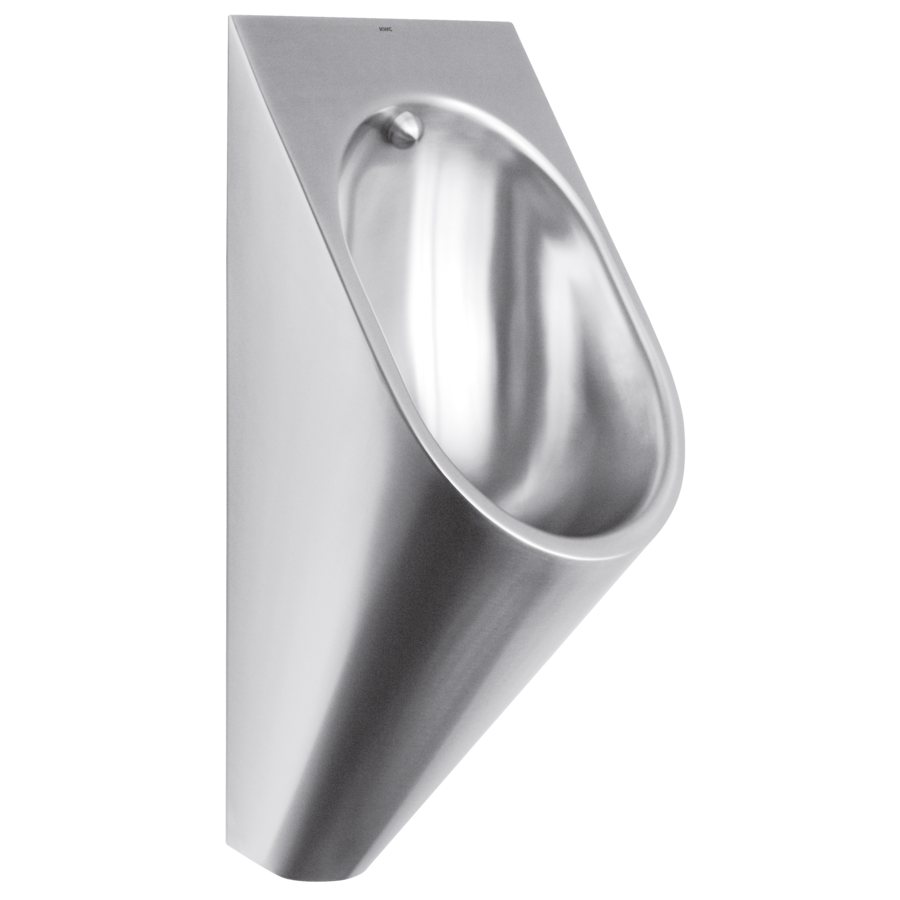

Single urinal, hidden mounting with stainless steel rods through wall (service room behind needed), stainless steel, surface satin finished, material thickness 1.2 mm, oval bowl, hidden horizontal outlet towards wall, mounting and fixing conform to EN 80, hidden screws, inclusive wall fixing bolts. 4 liter flush. With stainless steel spreader 1/2", inclusive domed waste and mounting material.

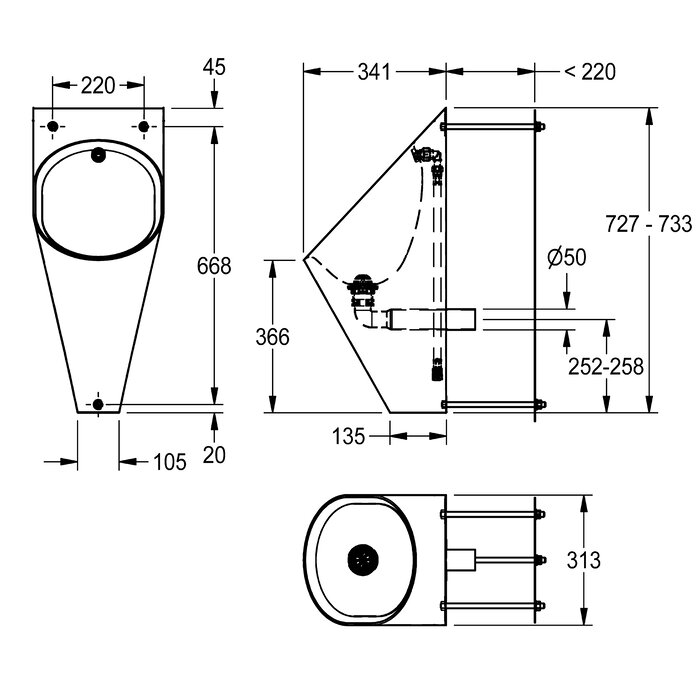

Dimensions 313 x 733 x 342 mm (W x H x D)
bolt fix with duct wall wall mounting
domed waste perforated waste

Product Specifications

inlet size
G 1/2 B
material
stainless steel
material code
1.4301 Chrome Nickel steel V2A
material thickness
1.2 mm
outlet size
DN 50
overall depth
342 mm
overall height
733 mm
overall width
313 mm
siphon included
no
surface finish
satin finished
type of flushing
water flushed
type of mounting
bolt fix with duct wall
type of urinal
single urinal
type of waste kit
domed waste
water inlet
concealed
water outlet
concealed
