KWC PLANOX

Washbasin unit with self-closing bibtaps

PL12USV

3600004024 - PL12USV - PLANOX - PLANOX washbasin unit with self-closing bibtaps

KWC PLANOX

Washbasin unit with self-closing bibtaps

PL12USV 3600004024

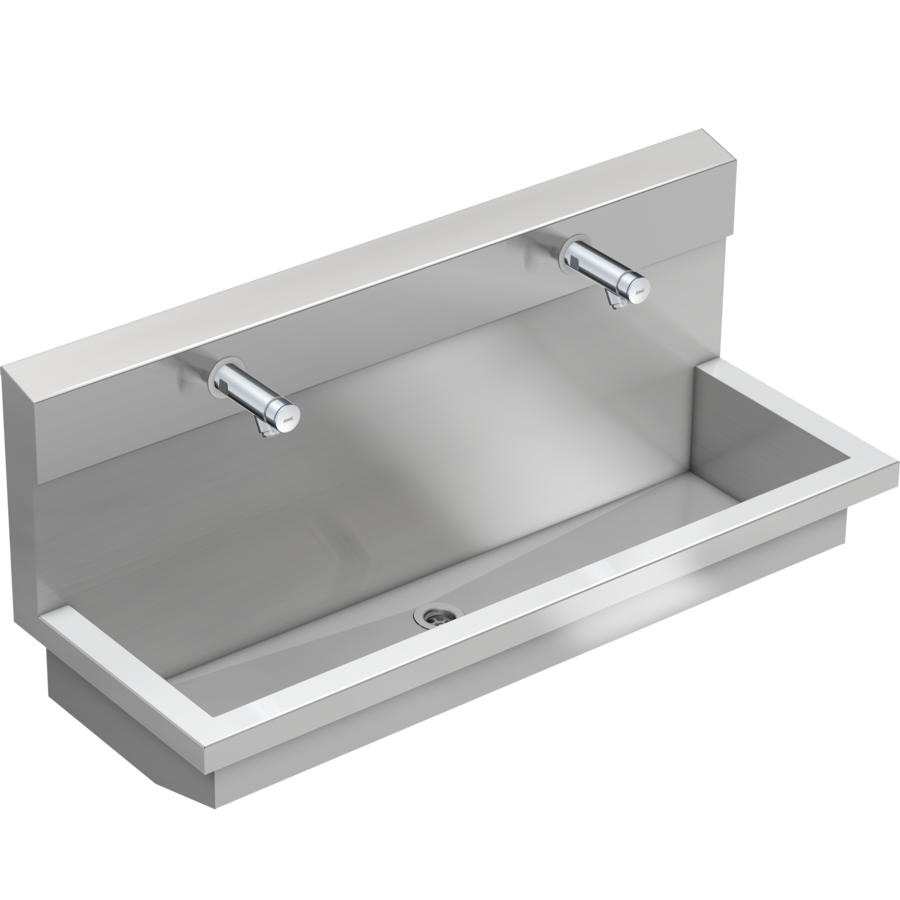

PLANOX washbasin unit with seamless welded trough, with two wash places, suitable for wall mounting, for connection to premixed hot water or cold water from the rear right or left. Stainless steel housing, satin finish, material thickness 1.5 mm. Centre waste, G 1 1/2 B flat perforated waste, including mounting material. Ready for connection, with mounted F3S self-closing bibtaps, hydraulically controlled, piston-free design, self-closing, fully adjustable flow time, polished chromium-plated brass housing. Aerator with integrated flow rate controller 3.0 l/min.

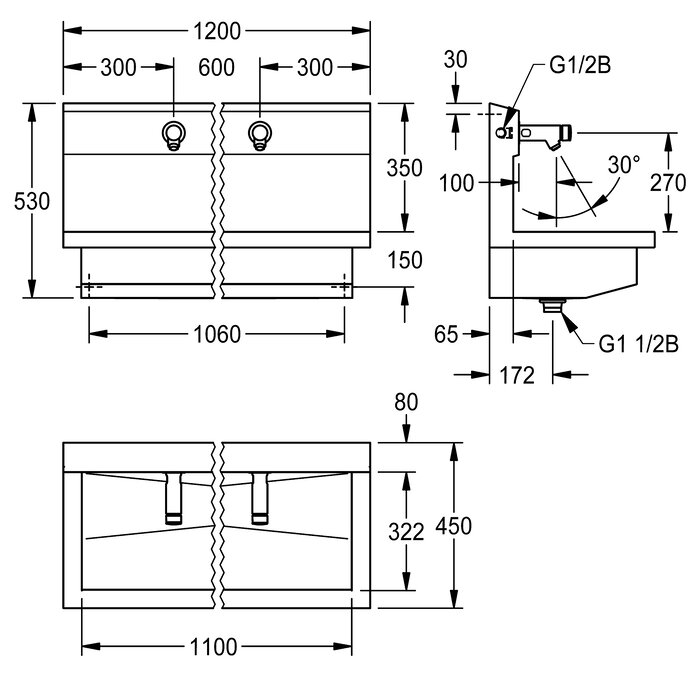

Dimensions 1200 x 530 x 440 mm (W x H x D)
Wash place width 600 mm

Product Specifications

material
stainless steel
material code
1.4301 Chrome Nickel steel V2A
number of waste holes
1
overall width
1,200 mm
rear upstand
no
splash back
yes
surface finish
satin finished
type of mounting
wall mounting
type of waste kit
perforated waste
waste hole position
centre
waste kit included
yes
