KWC QUADRO

Single washbasin

ANMW416

2000101159 - ANMW416 - QUADRO - QUADRO single washbasin

KWC QUADRO

Single washbasin

ANMW416 2000101159

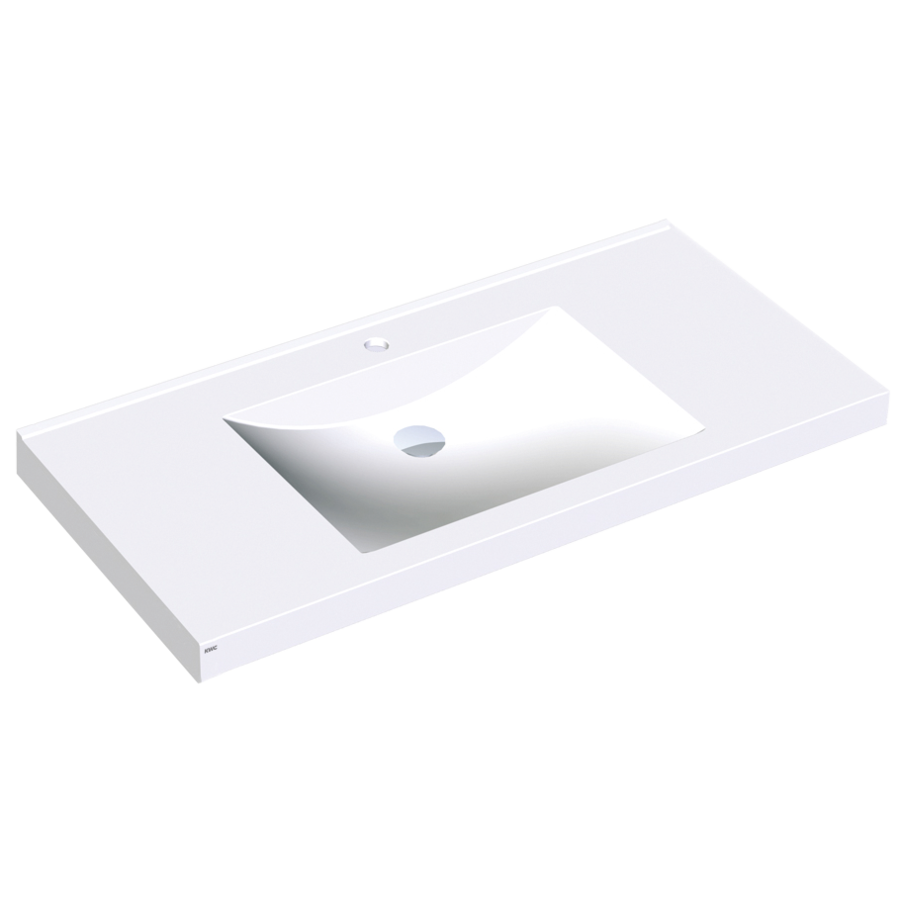

QUADRO single washbasin made of MIRANIT resin-bonded mineral material, with smooth, pore-free surface (temperature-resistant up to 80 °C). Alpine white colour. With seamless, rectangular bowl without overflow, with taphole. Mounting on washbasin back panel. Rear contoured edge. Three-sided apron 60 mm (H). Mounting material included.

Dimensions 1000 x 125 x 530 (W x H x D)
Bowl dimensions 580 x 40/90 x 360 (W x H x D)
1 0

Product Specifications

bowl position
Center
bowl - bowl height
90 mm
bowl - depth
360 mm
bowl shape
rectangle
bowl - width
580 mm
colour
alpinewhite
material
mineral material
material code
Miranit
overall depth
530 mm
overall height
125 mm
overall width
1,000 mm
overflow
no
rear upstand
yes
siphon included
no
splash back
no
number of tap holes
1
tap hole diameter
35 mm
tap hole position
middle
tap ledge
yes
type of mounting
wall mounting
waste hole position
centre back
waste hole projection
185 mm
waste kit included
no
waste size
DN 32
