KWC

Flushing plate with 2 buttons for wall-installation cistern

AQUA555

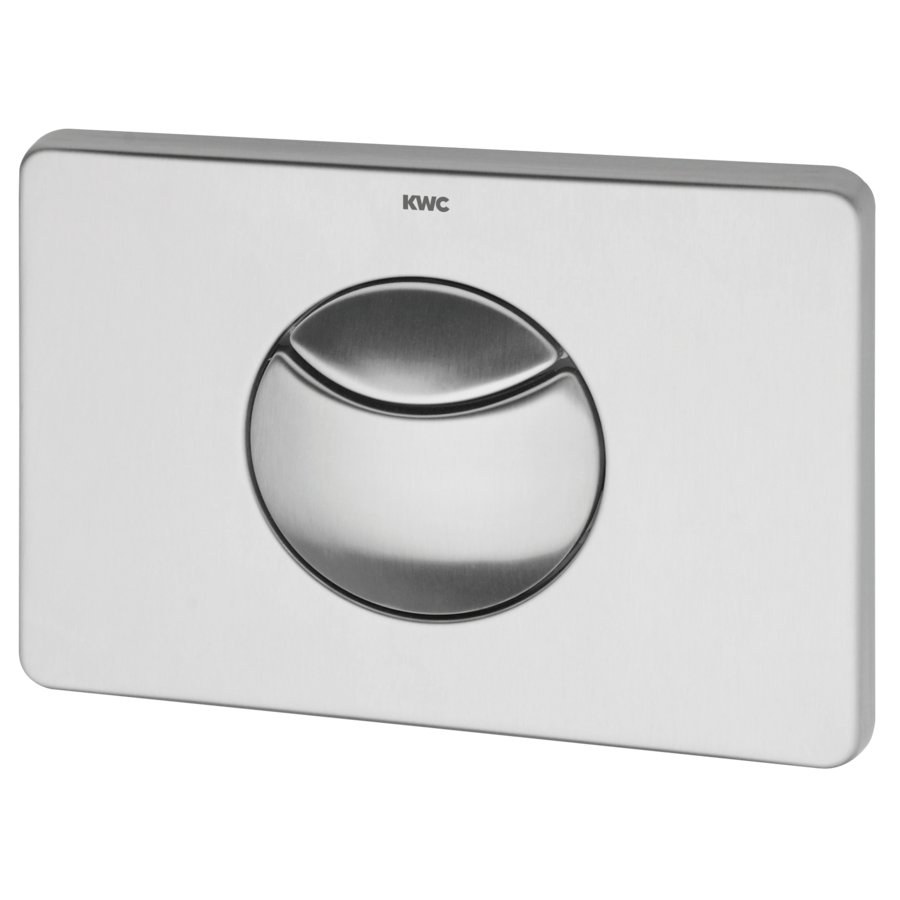

2000067493 - AQUA555 - FLUSHING-TAPS-CONV - Flushing plate with 2 buttons for wall-installation cistern

KWC

Flushing plate with 2 buttons for wall-installation cistern

AQUA555 2000067493

Flushing plate for wall-installation cistern, operation from front, 2-level flushing or start/stop flushing, consisting of operating button, button mounting, installation frame, fixing bolts and securing screw, made of stainless steel.

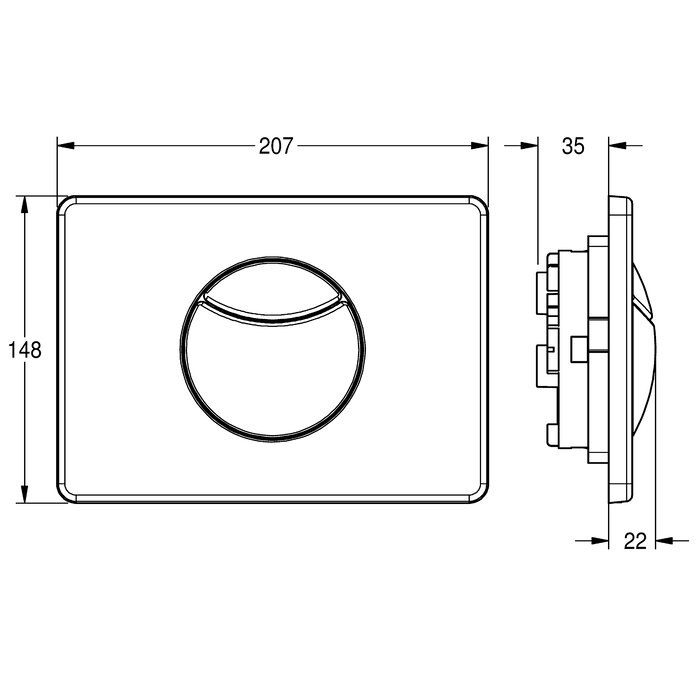

Dimensions 207 x 148 mm (W x H)

Product Specifications

Cover plate height
148 mm
Cover plate width
207 mm
functional principle
manual
material casing
stainless steel
material code casing
1.4301 Chrome Nickel steel V2A
overall depth
22 mm
overall height
148 mm
overall width
207 mm
surface finish
satin finished
surface finish casing
brushed
type of flushing fitting
for WC cistern

Downloads

Technical Documents

BIM Files
