KWC EXOS.

Multiple washbasin

ANMW0062

3600000206 - ANMW0062 - EXOS - EXOS. multiple washbasin

KWC EXOS.

Multiple washbasin

ANMW0062 3600000206

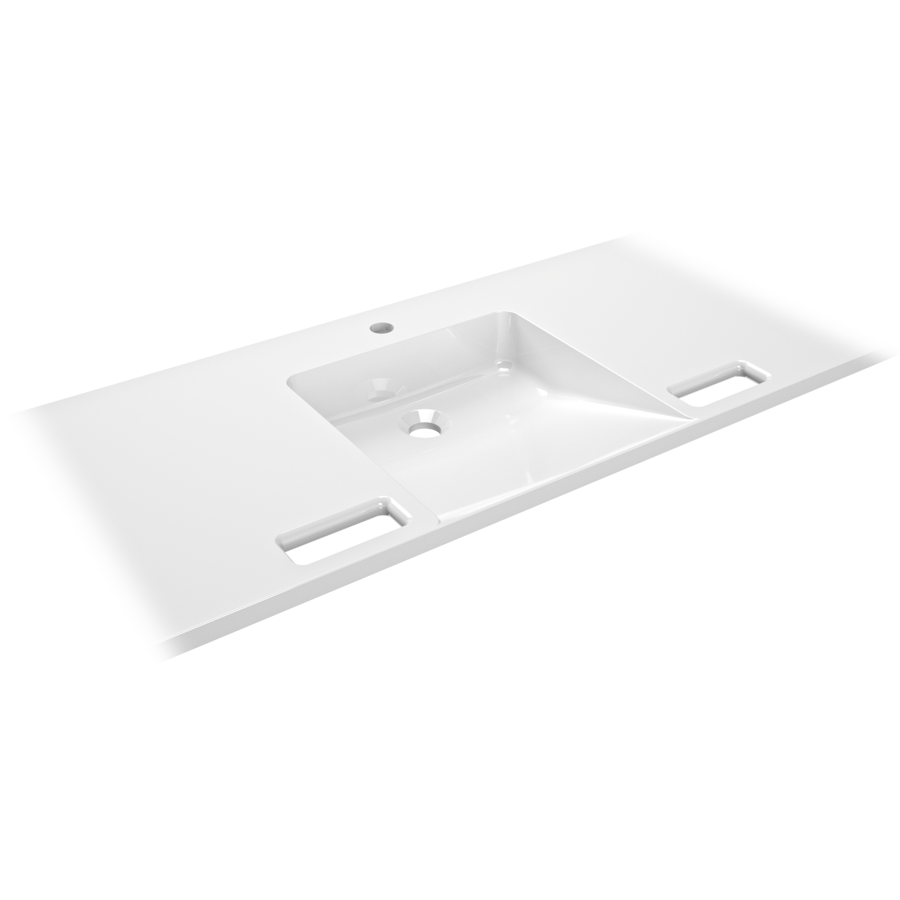

EXOS. multiple washbasin made of MIRANIT resin-bonded mineral material, with pore-free, smooth surface (temperature-resistant up to 80 °C), Alpine white colour. Roll-under, with integrated grab rails, storage areas, up to four seamlessly moulded bowls, without overflow, with 35 mm tap hole (D). Variable bowl spacing, mounting on washbasin back panel, optionally available with apron and/or upstand or surge edge, including mounting material.

Dimensions 780–3600 x 125 x 500 mm (W x H x D)
Bowl dimensions 380 x 98 x 390 mm (W x H x D)

Detailed specifications, such as the type of installation and bowl spacing, etc., shall be provided via production sheets based on the individual order (to be requested from KWC Professional).

Product Specifications

bowl position
center
bowl - bowl height
98 mm
bowl - depth
390 mm
bowl shape
rectangle
bowl - width
380 mm
colour
alpinewhite
material
mineral material
material code
Miranit
overall depth
500 mm
overall height
98 mm
overflow
no
rear upstand
no
siphon diameter
DN 32
siphon included
no
tap hole position
middle
tap ledge
yes
